MS-W

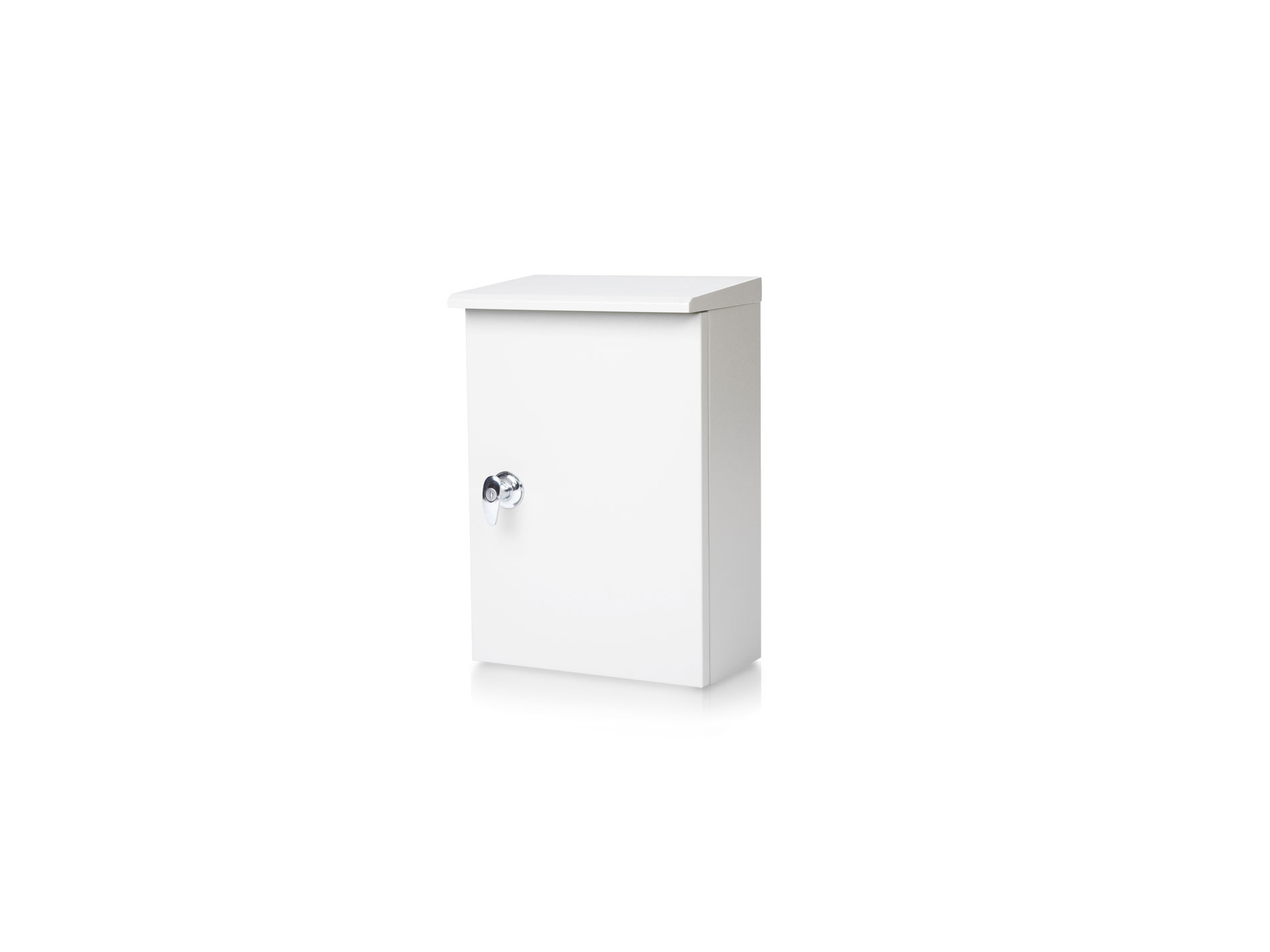

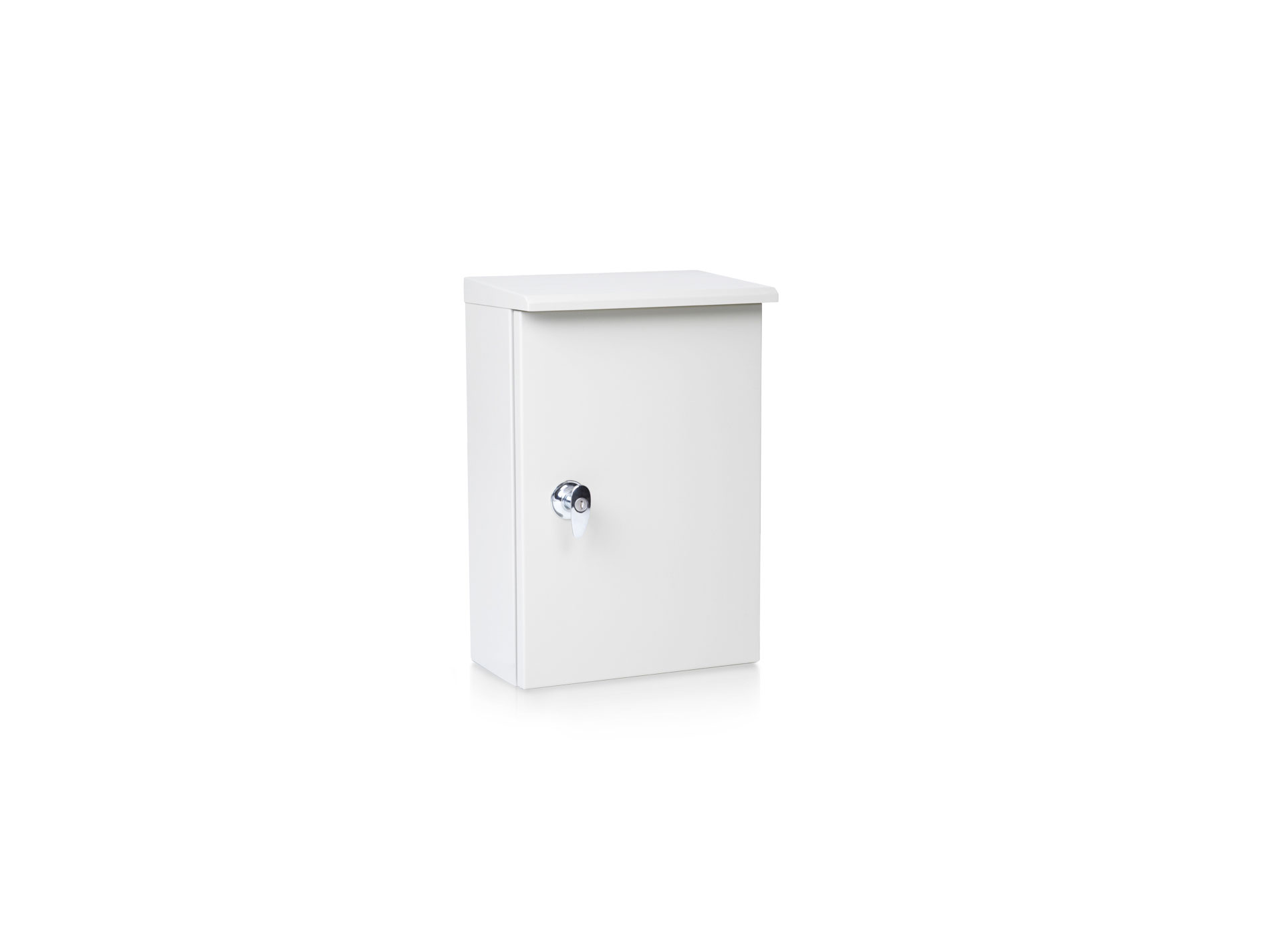

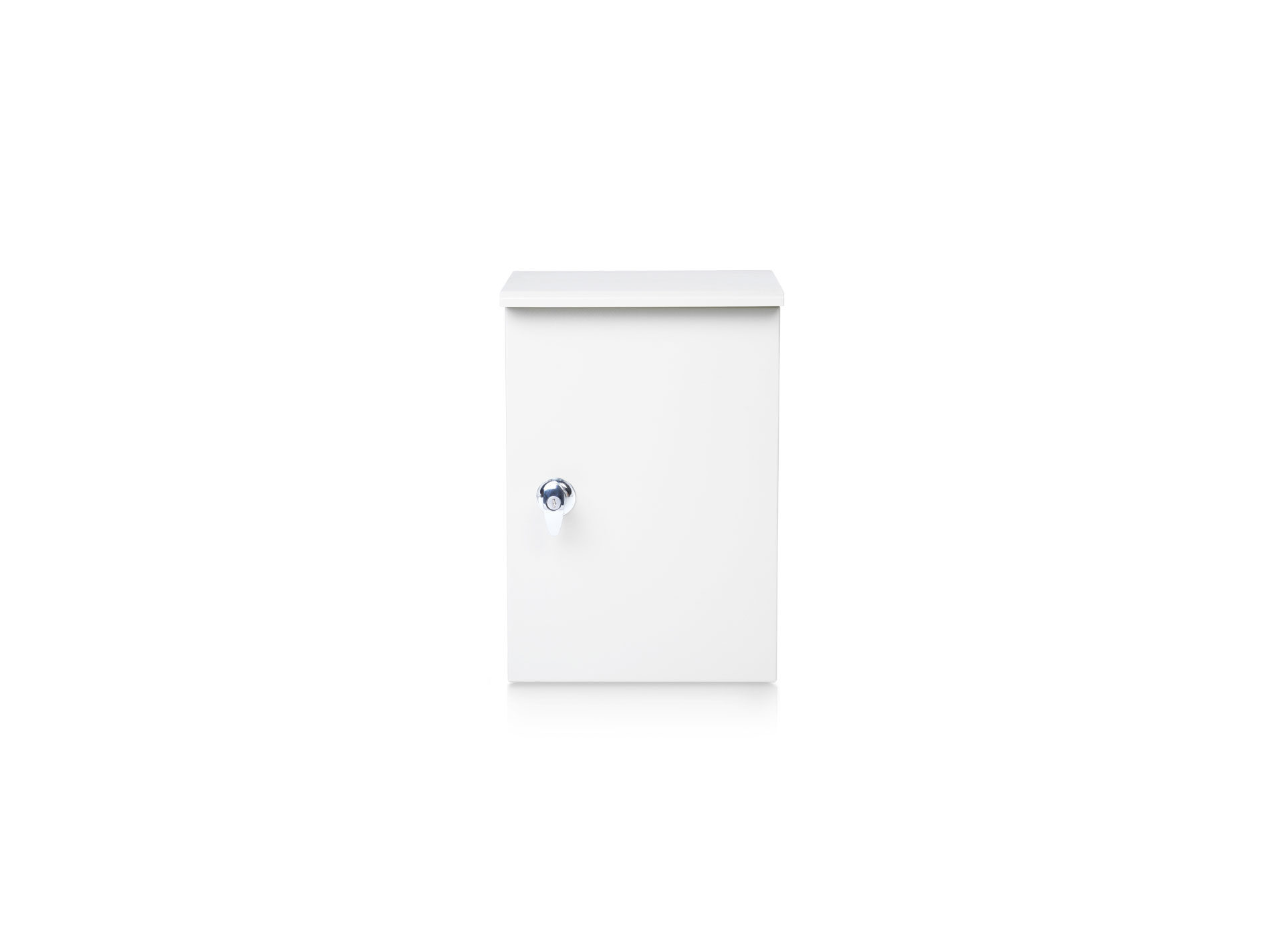

Wall Mounting Cabinets
Standard Materials : SPCC – Cold Rolled Mild Steel Sheet 0.8 – 1.0 mm.
Finishing : Epoxy Powder Coatings (Light Cream)
Technical Features :
– Houses Electrical Controls and Instruments

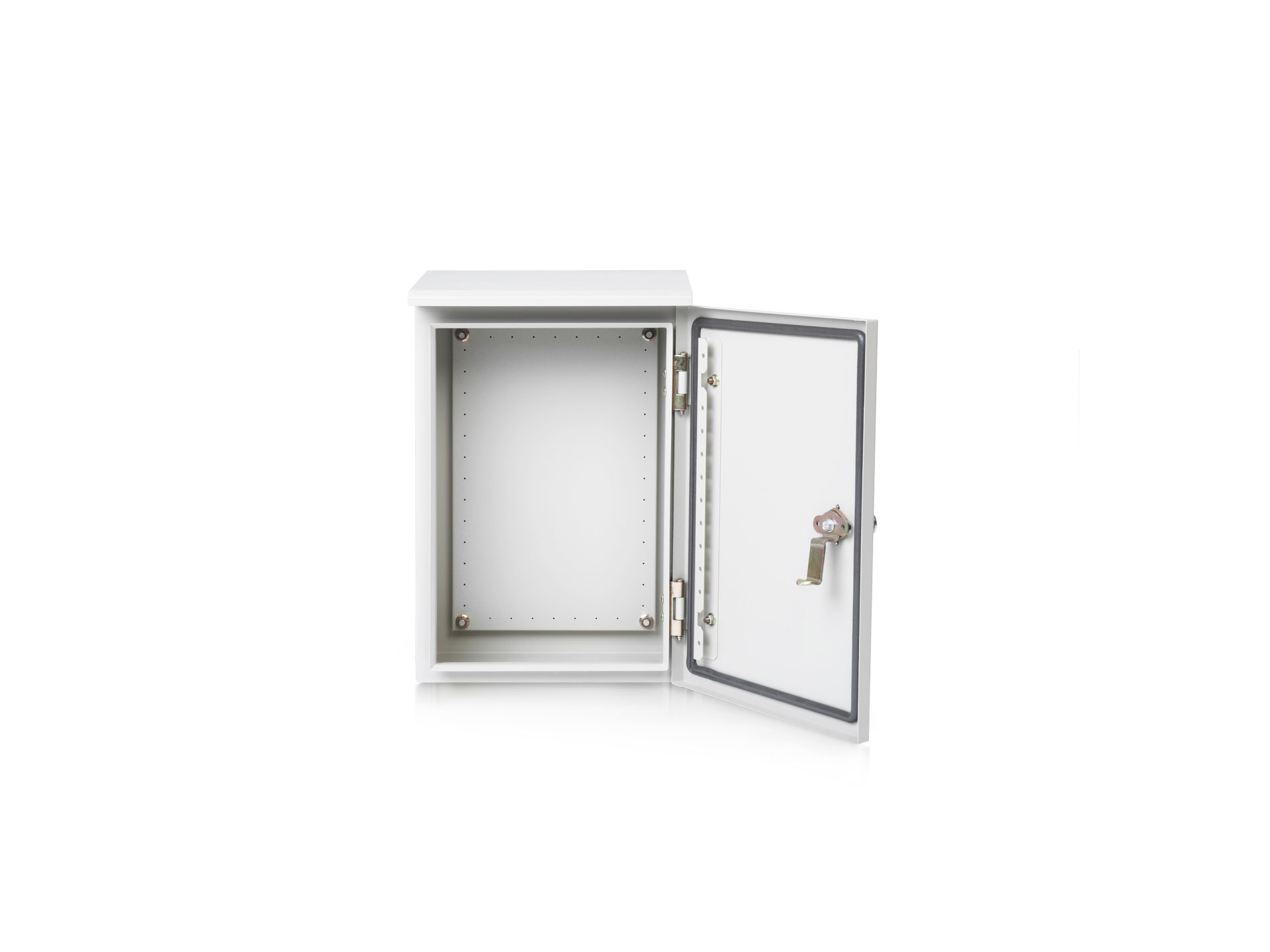

– Internal Mounting Plate
– Foam sealing with FIPFG (Foamed In-Place Foam Gasket)
– Suitable for Indoor and Outdoor Installation
– Water and Dust Protection IP 55 (TIS 513-2553)
Notes : Can be customized with different materials, sizes, finish colors and textures
OEM are welcome
| Type | Size(WxHxD) | Thickness | ||
|---|---|---|---|---|
| W (mm.) | H (mm.) | D (mm.) | ||
| MS-W 00 | 200 | 300 | 150 | 0.80 mm |
| MS-W 0 | 250 | 350 | 150 | 0.80 mm |
| MS-W 1 | 300 | 450 | 170 | 1.00 mm |
| MS-W 2 | 350 | 520 | 170 | 1.00 mm |
| MS-W 3 | 400 | 570 | 200 | 1.00 mm |
| MS-W 4 | 440 | 610 | 230 | 1.00 mm |
| MS-W 5 | 570 | 690 | 250 | 1.00 mm |
| MS-W 6 | 600 | 760 | 250 | 1.00 mm |
| MS-W 7 | 640 | 920 | 250 | 1.00 mm |
