MS

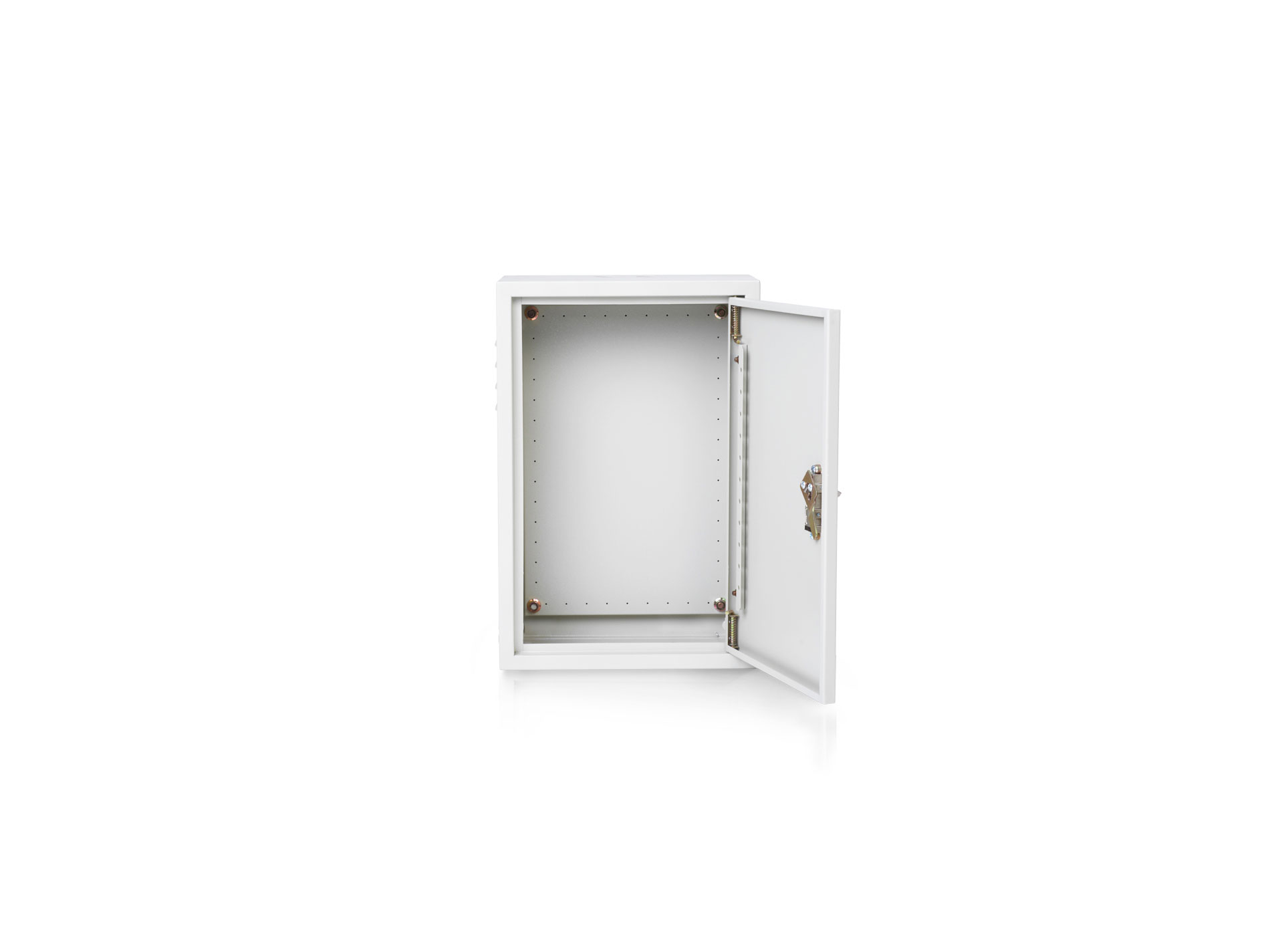

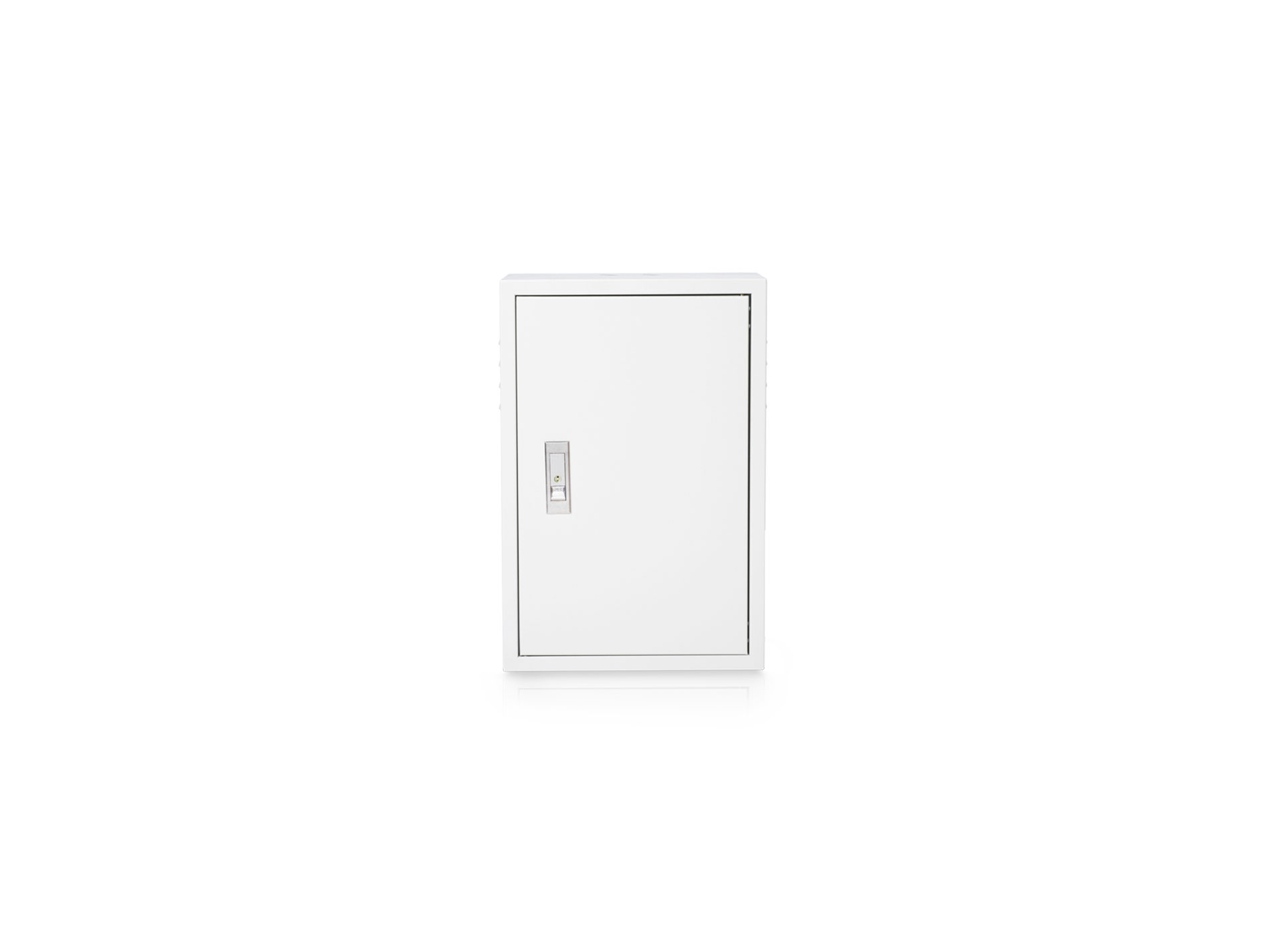

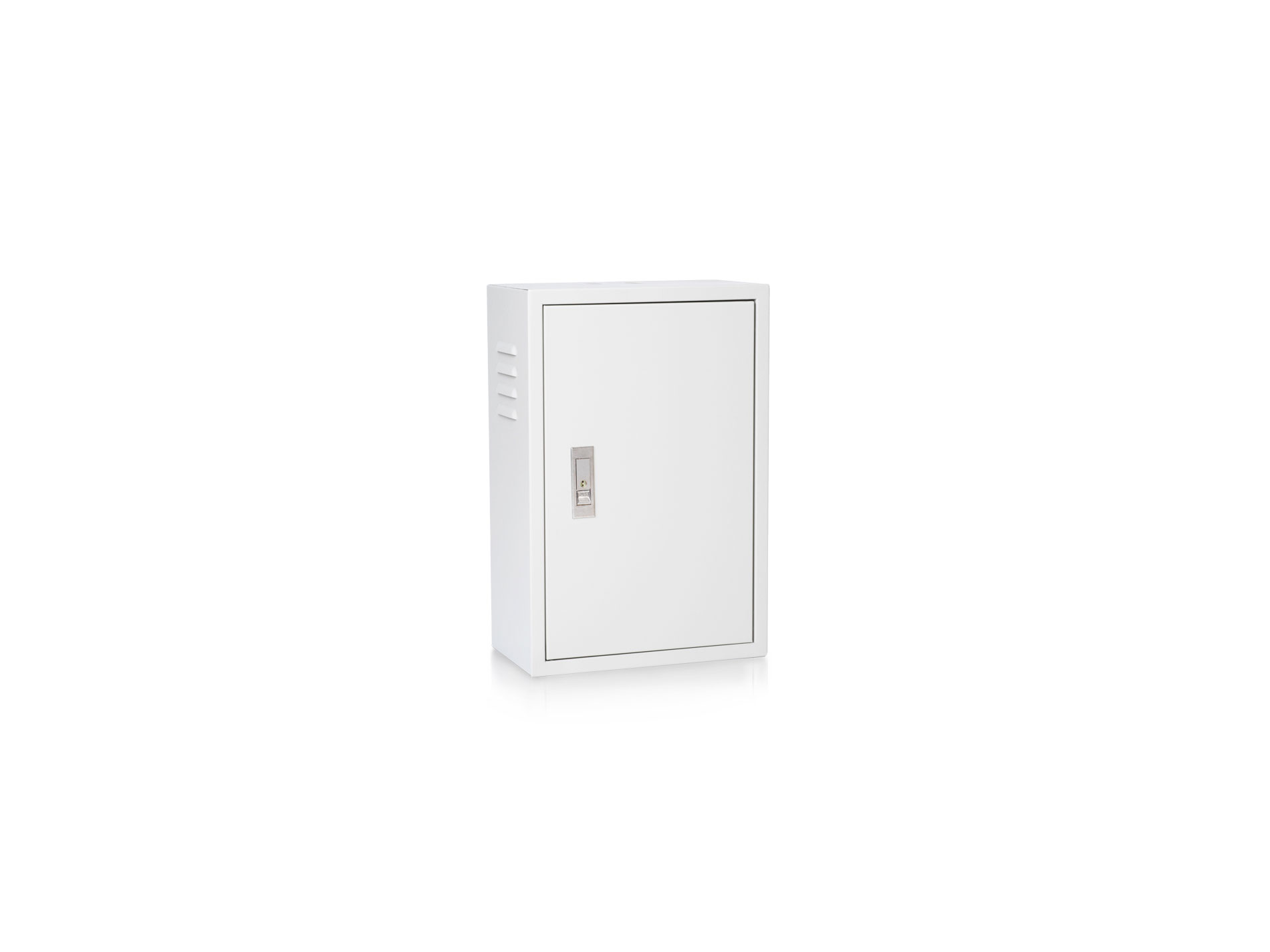

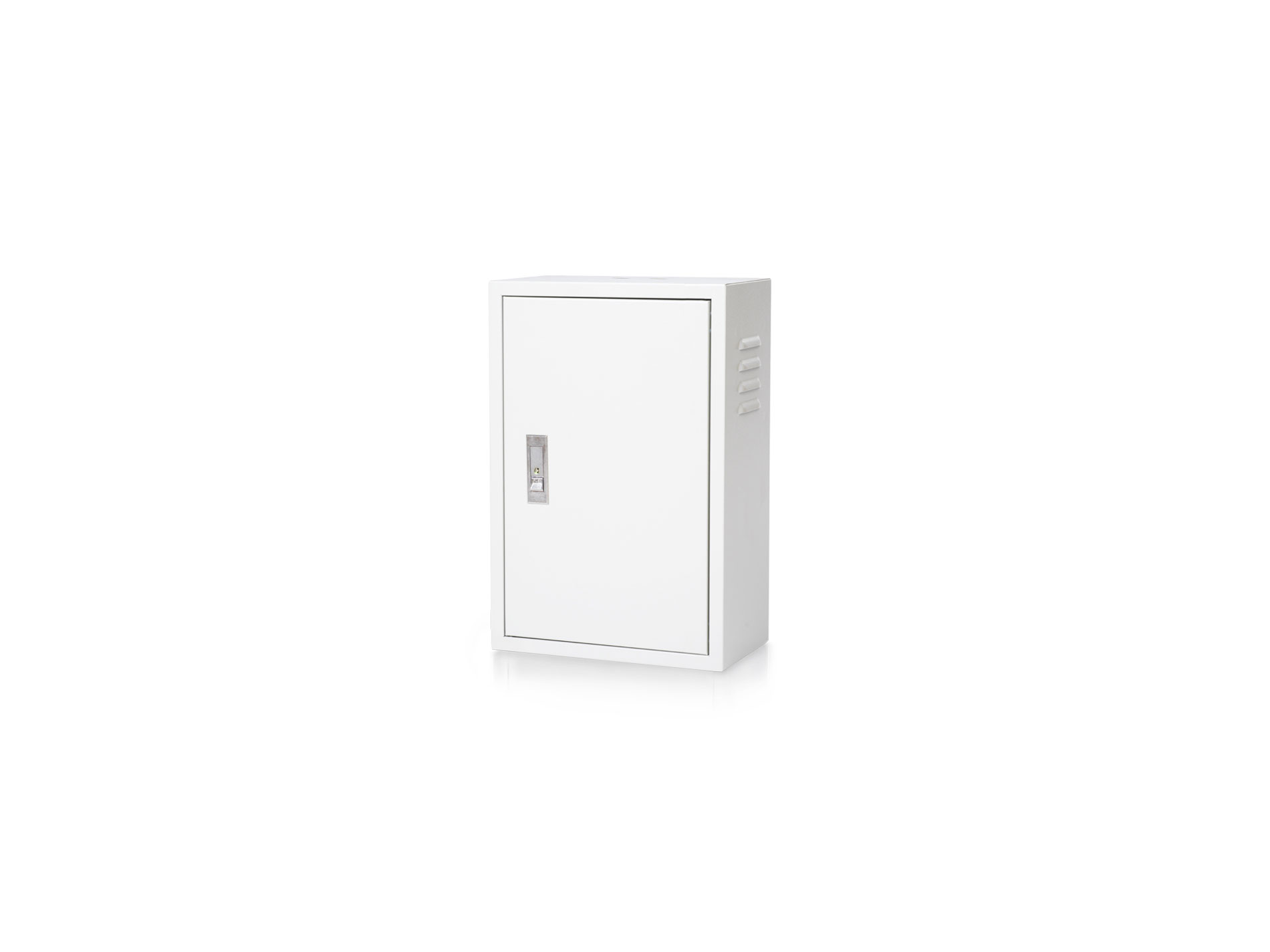

Wall Mounting Cabinets
Standard Materials : Cold Rolled Mild Steel Sheet 0.8 – 1.0 mm.
Finishing : Epoxy Powder Coatings (Light Cream)
Technical Features :
– Houses Electrical Controls and Instruments
– Internal Mounting Plate
– Suitable for Indoor Installation
– Water and Dust Protection IP 40 (TIS 513-2553)
Notes : Can be customized with different materials, sizes, finish colors and textures
OEM are welcome
| Type | Size(WxHxD) | Thickness | ||
|---|---|---|---|---|
| W (mm.) | H (mm.) | D (mm.) | ||
| MS 00 | 200 | 300 | 150 | 0.80 mm |
| MS 0 | 250 | 350 | 150 | 0.80 mm |
| MS 1 | 300 | 450 | 170 | 0.80 mm |
| MS 2 | 350 | 520 | 170 | 0.80 mm |
| MS 3 | 400 | 570 | 200 | 0.80 mm |
| MS 4 | 440 | 610 | 230 | 0.80 mm |
| MS 5 | 570 | 690 | 250 | 1.00 mm |
| MS 6 | 600 | 760 | 250 | 1.00 mm |
| MS 7 | 640 | 920 | 250 | 1.00 mm |
