MSA

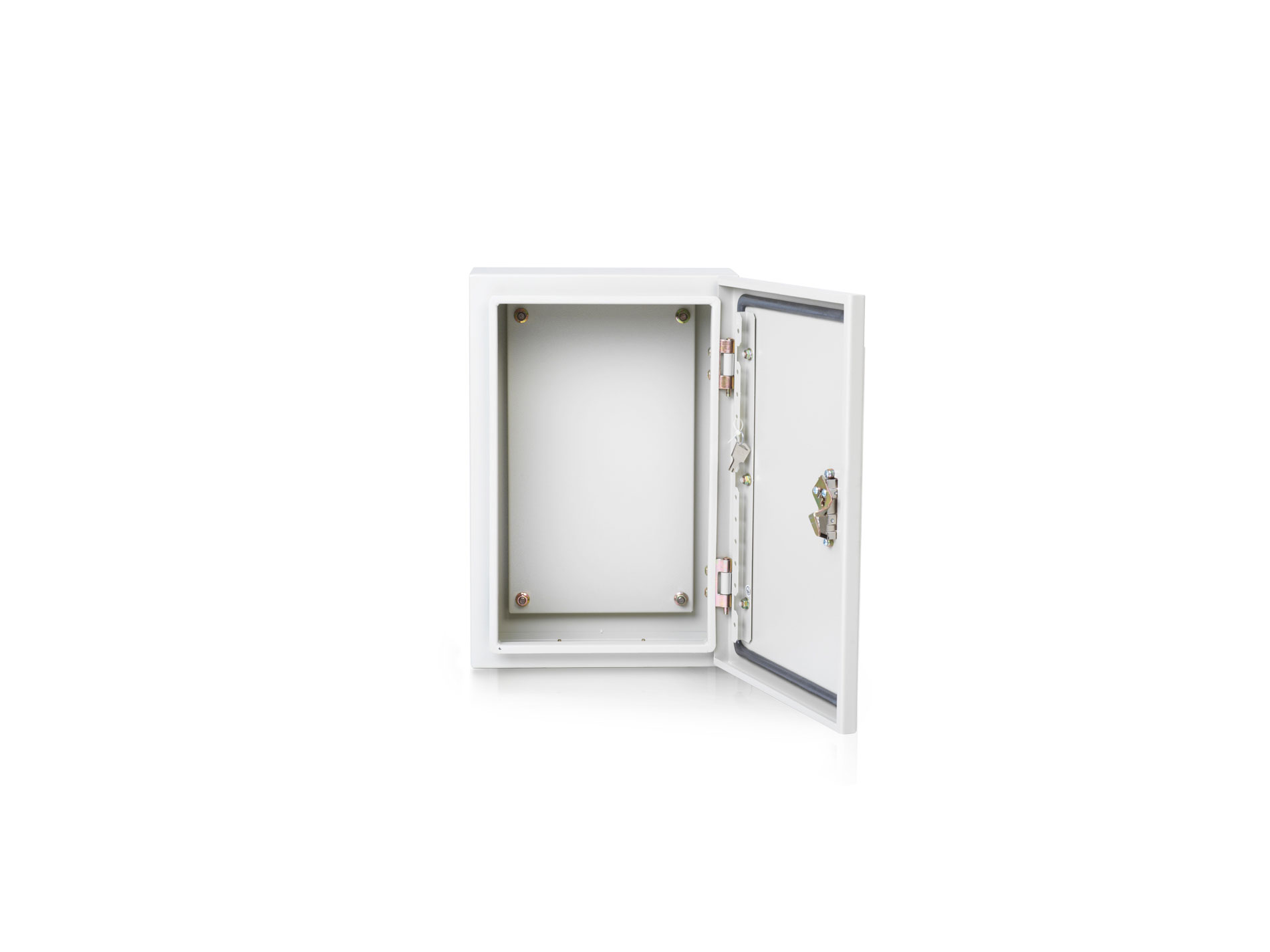

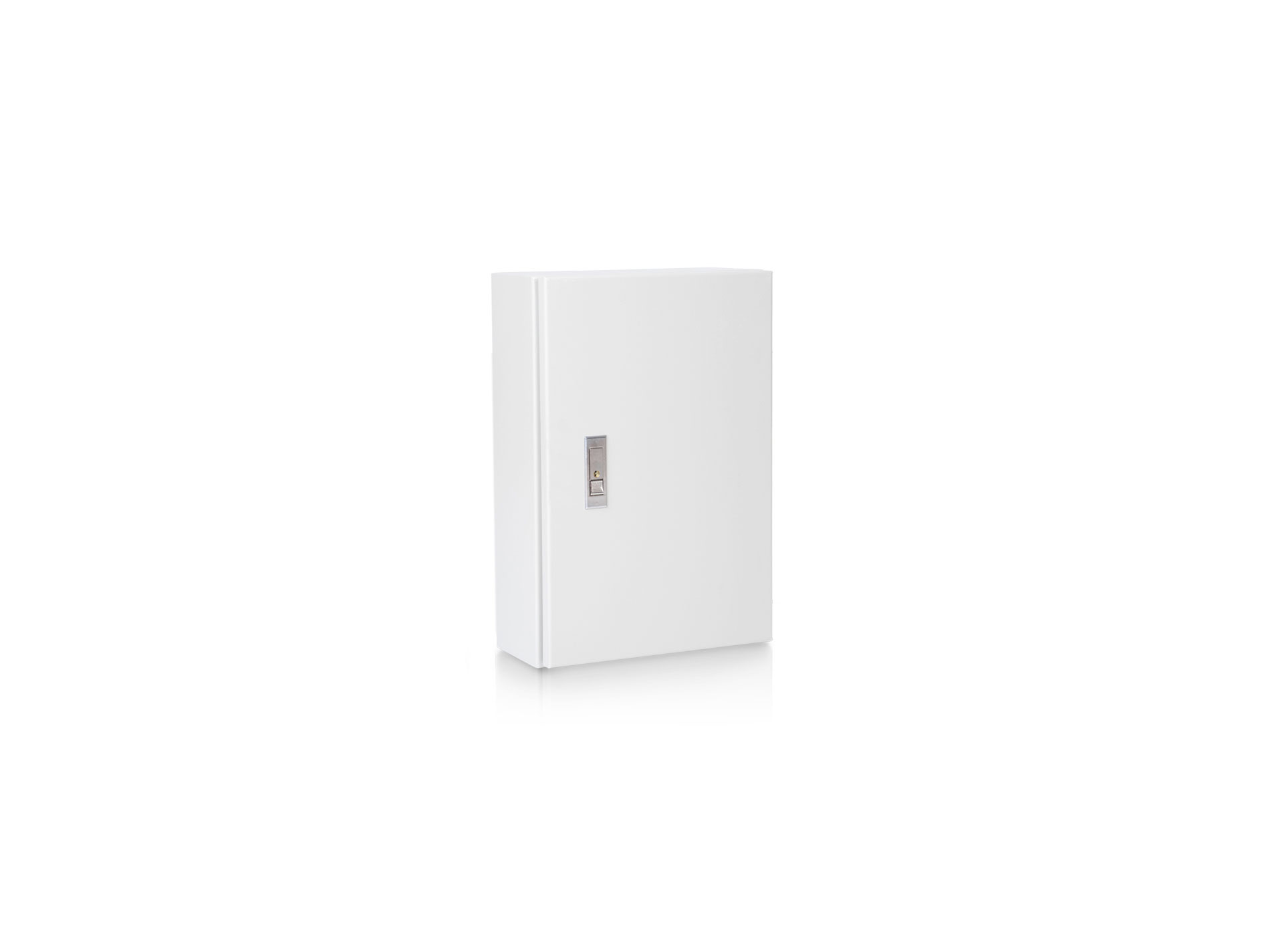

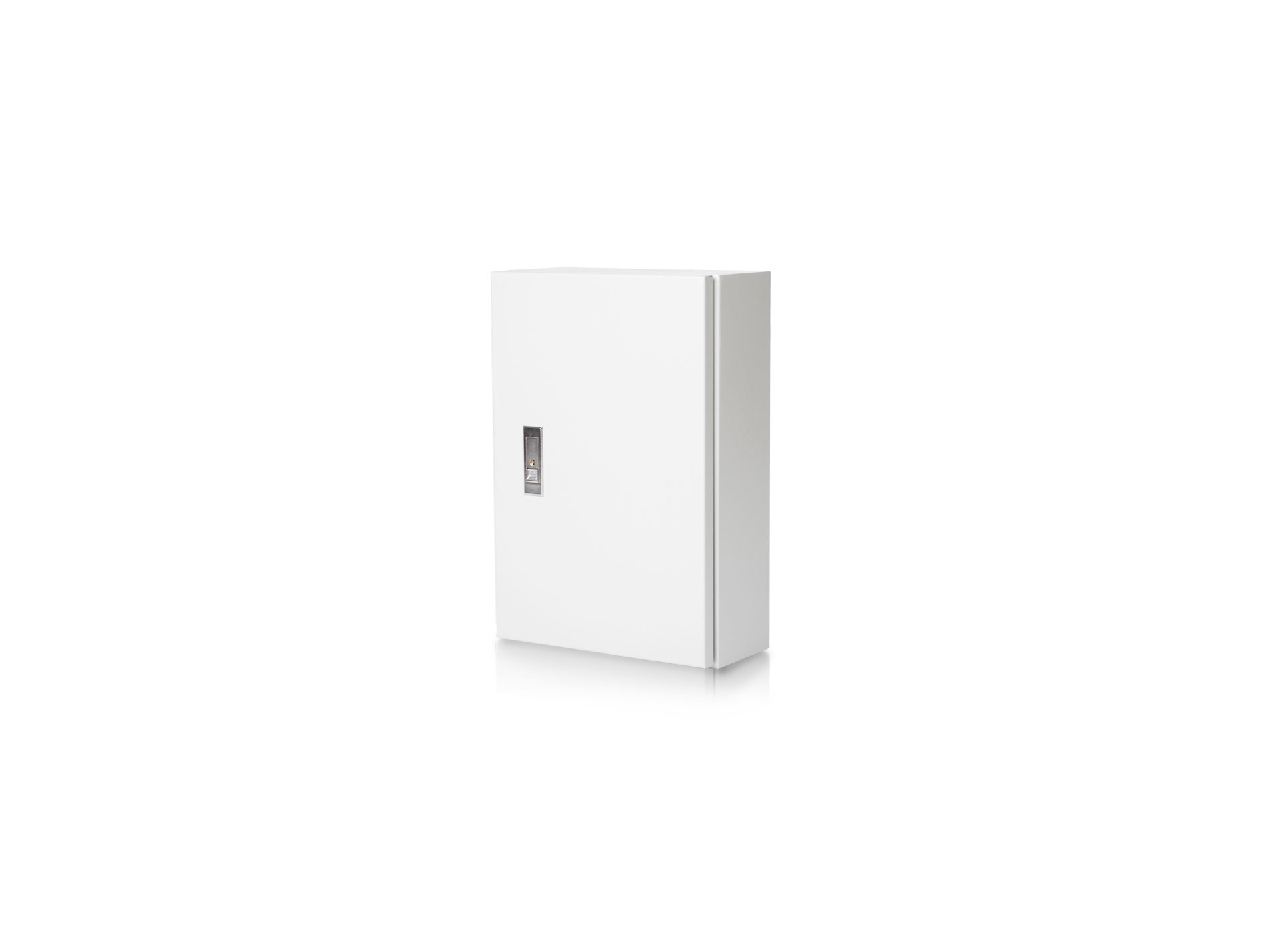

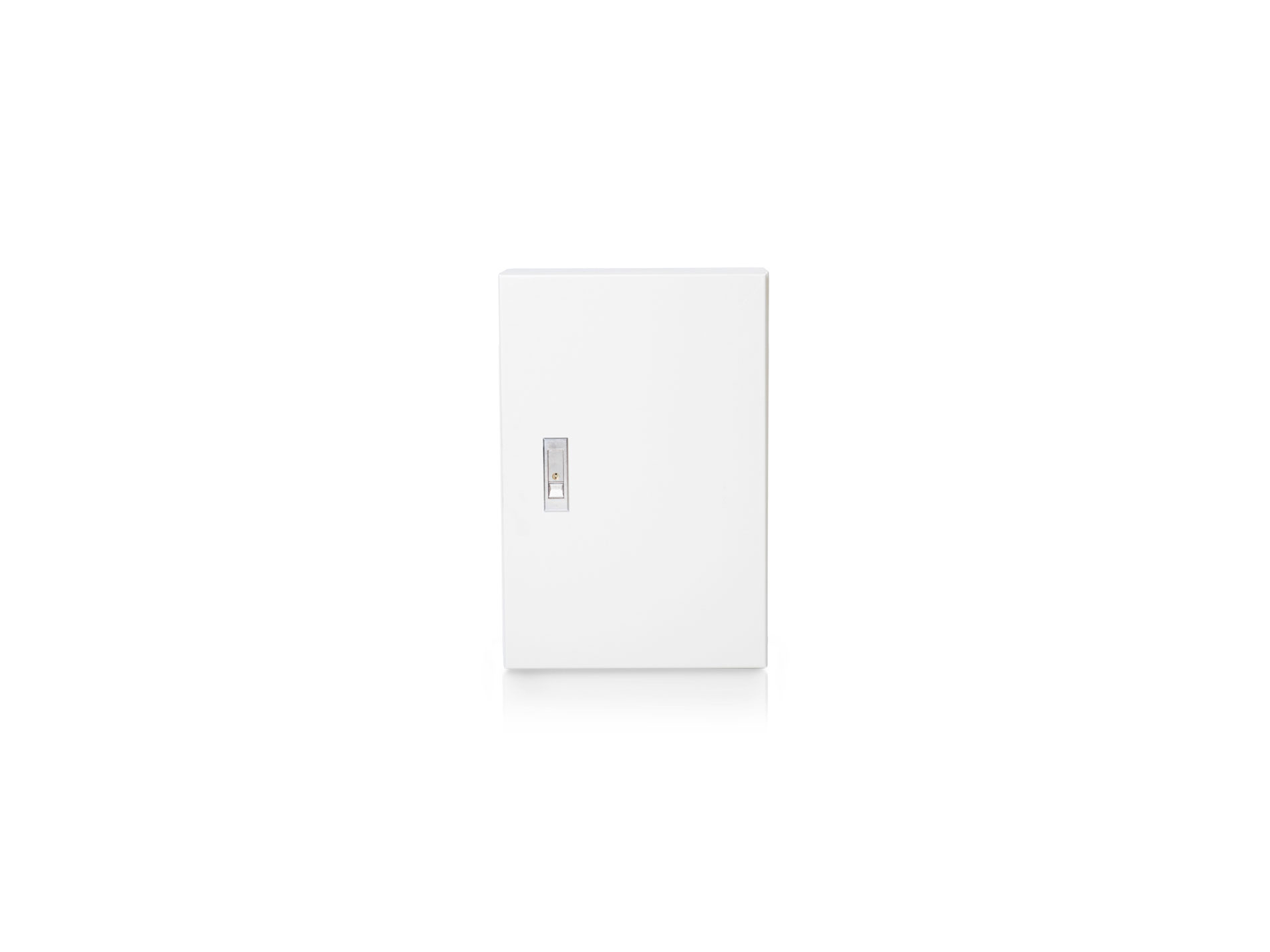

Compact Enclosures
Standard Materials : SPCC – Cold Rolled Mild Steel Sheet 1.0 – 1.5 mm.
Finishing : Epoxy Powder Coatings (Light Cream)
Technical Features :
– Houses Electrical Controls and Instruments
– Internal Mounting Plate
– Bottom Gland Plate for Incoming Cable
– Foam sealing with FIPFG (Foamed In-Place Foam Gasket)
– Suitable for Indoor and Outdoor Installation
– Water and Dust Protection IP 55 (TIS 513-2553)
Notes : Can be customized with different materials, sizes, finish colors and textures
OEM are welcome
| Type | Size(WxHxD) | Thickness | ||
|---|---|---|---|---|
| W (mm.) | H (mm.) | D (mm.) | ||
| MSA 0 | 250 | 300 | 150 | 1.0 mm |
| MSA 1 | 280 | 350 | 150 | 1.0 mm |
| MSA 2 | 300 | 450 | 150 | 1.0 mm |
| MSA 3 | 350 | 450 | 150 | 1.0 mm |
| MSA 4 | 300 | 450 | 200 | 1.0 mm |
| MSA 5 | 350 | 450 | 200 | 1.0 mm |
| MSA 6 | 350 | 500 | 200 | 1.0 mm |
| MSA 7 | 400 | 500 | 200 | 1.0 mm |
| MSA 8 | 450 | 600 | 200 | 1.0 mm |
| MSA 9 | 450 | 600 | 250 | 1.2 mm |
| MSA 10 | 500 | 600 | 200 | 1.2 mm |
| MSA 11 | 500 | 600 | 250 | 1.2 mm |
| MSA 12 | 550 | 700 | 250 | 1.2 mm |
| MSA 13 | 630 | 750 | 250 | 1.2 mm |
| MSA 14 | 630 | 900 | 250 | 1.2 mm |
| MSA 15 | 600 | 1100 | 250 | 1.5 mm |
| MSA 16 | 700 | 1100 | 250 | 1.5 mm |
| MSA 17 | 800 | 1200 | 250 | 1.5 mm |
| MSA 18 | 900 | 1200 | 250 | 1.5 mm |
