MSQ

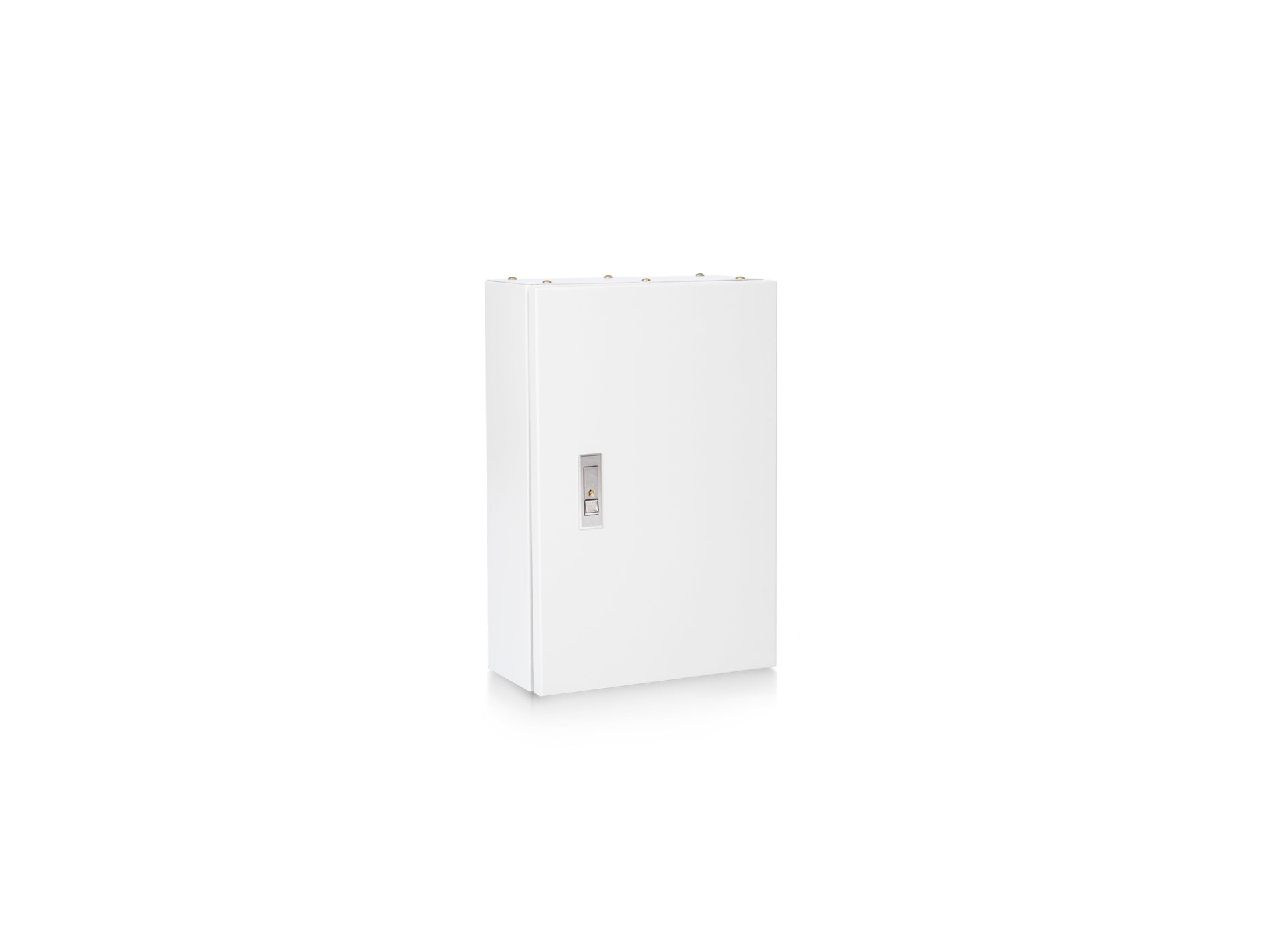

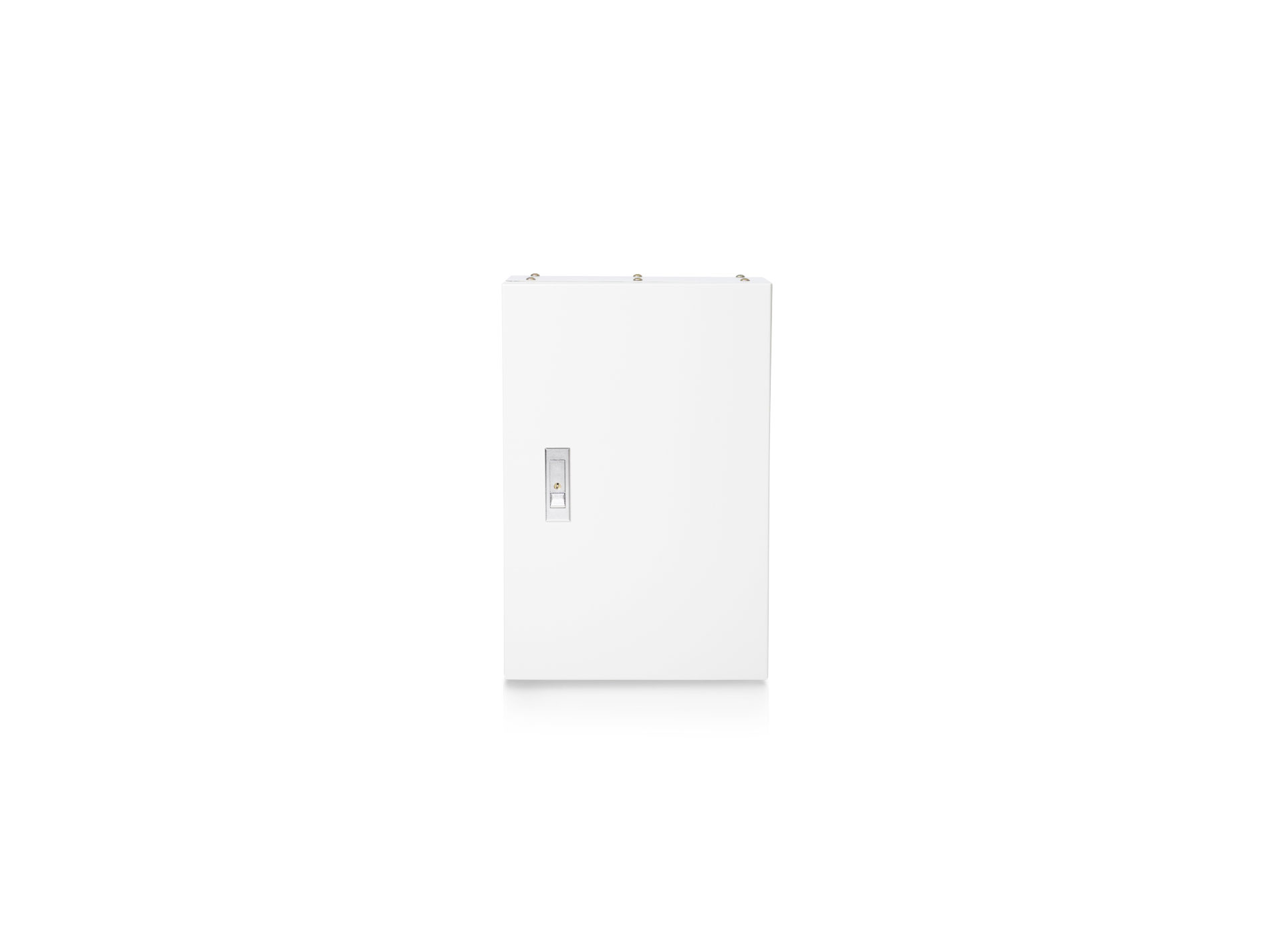

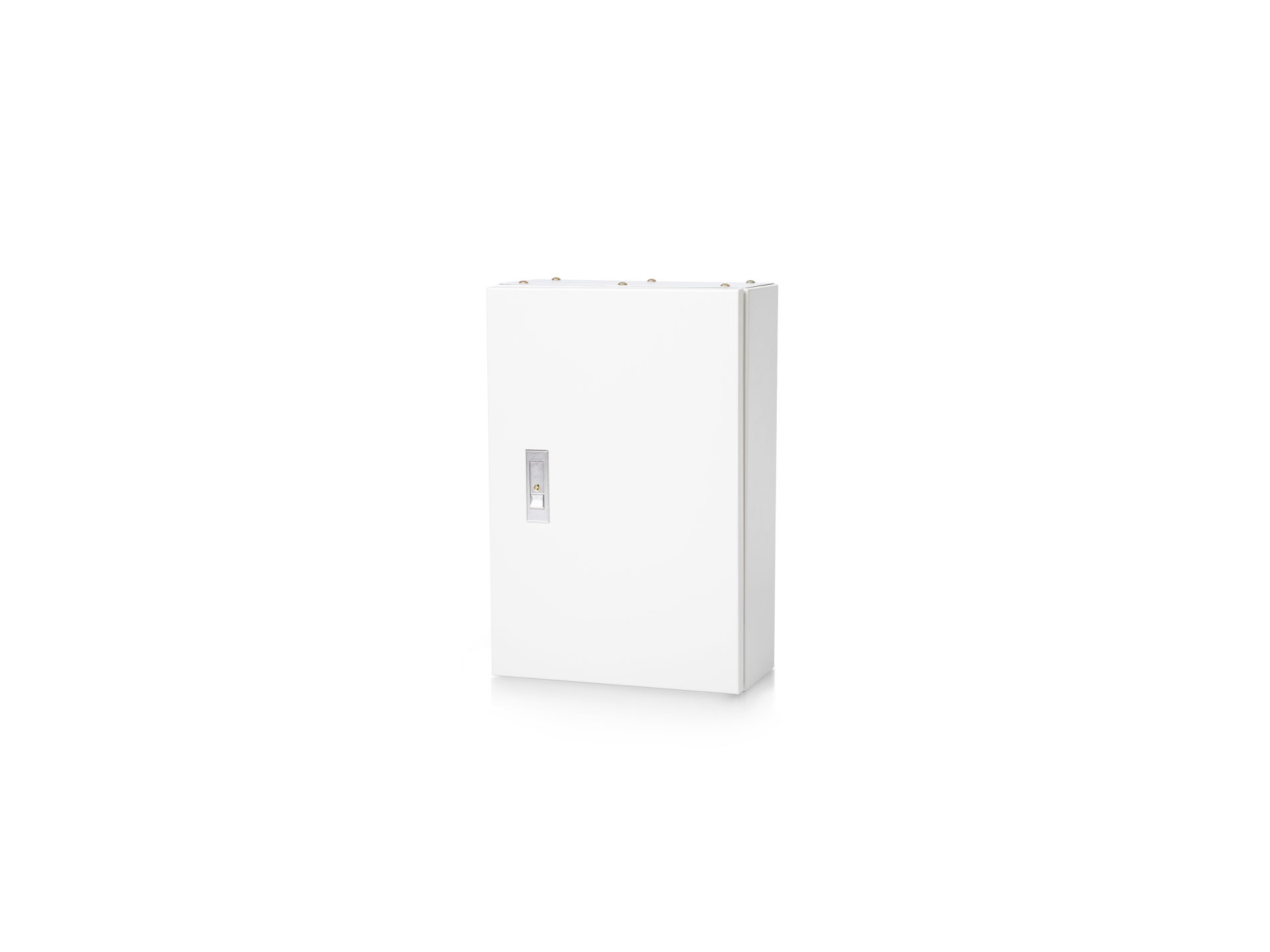

Wall Mounting Cabinets
Standard Materials : SPCC – Cold Rolled Mild Steel Sheet 0.8 – 1.2 mm.
Finishing : Epoxy Powder Coatings (Light Cream)
Technical Features :
– Houses Electrical Controls and Instruments

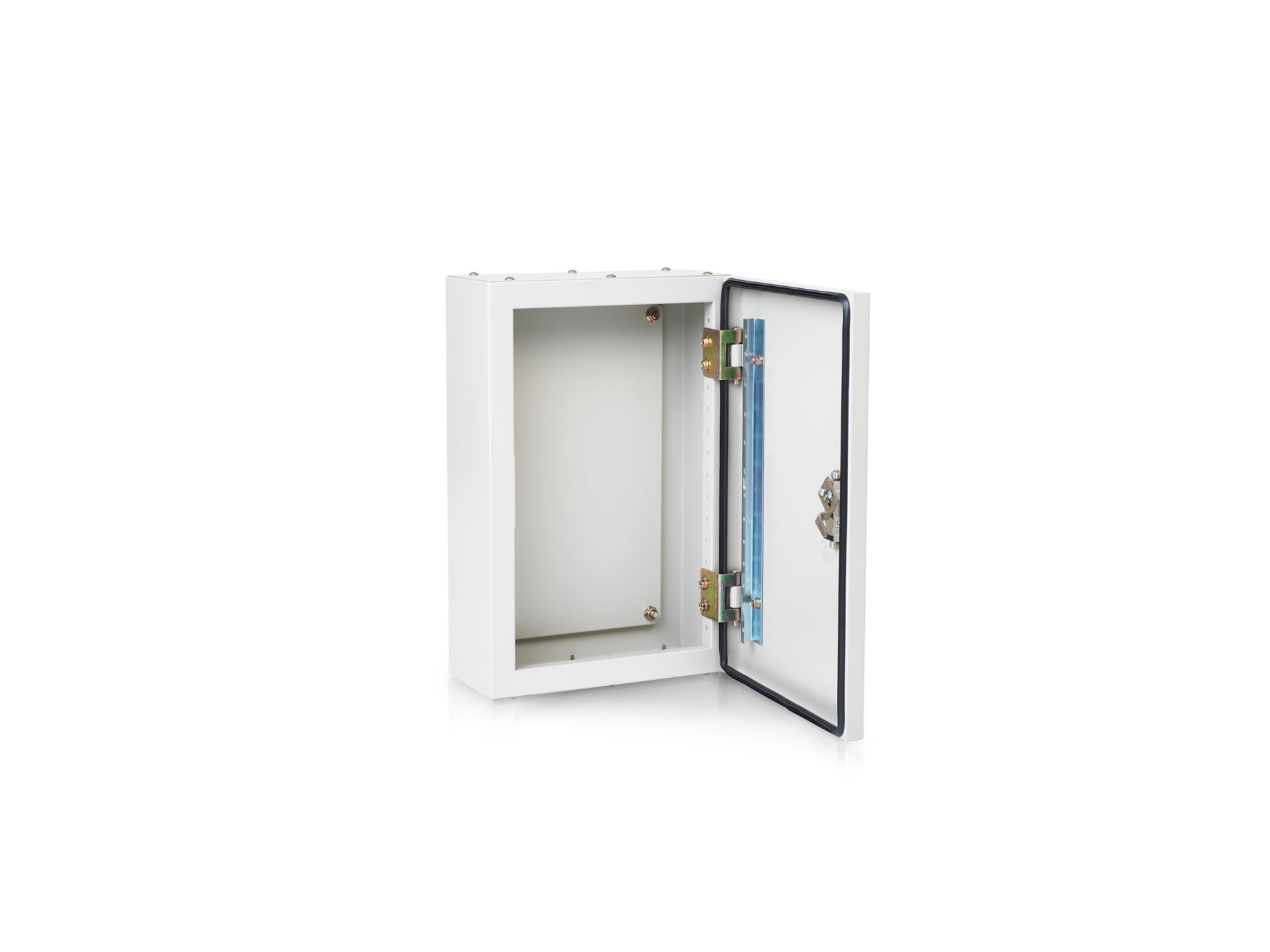

– Internal Mounting Plate
– Top and Bottom Gland Plate for Incoming Cable
– Suitable for Indoor Installation
– Water and Dust Protection IP 40 (TIS 513-2553)
Notes : Can be customized with different materials, sizes, finish colors and textures
OEM are welcome
| Type | Size(WxHxD) | Thickness | ||
|---|---|---|---|---|
| W (mm.) | H (mm.) | D (mm.) | ||
| MSQ 0 | 200 | 300 | 150 | 0.80 mm |
| MSQ 1 | 280 | 350 | 150 | 0.80 mm |
| MSQ 2 | 300 | 450 | 150 | 0.80 mm |
| MSQ 3 | 350 | 450 | 150 | 0.80 mm |
| MSQ 4 | 300 | 450 | 200 | 0.80 mm |
| MSQ 5 | 350 | 450 | 200 | 0.80 mm |
| MSQ 6 | 350 | 500 | 200 | 0.80 mm |
| MSQ 7 | 400 | 550 | 200 | 0.80 mm |
| MSQ 8 | 450 | 600 | 200 | 1.00 mm |
| MSQ 9 | 450 | 600 | 250 | 1.00 mm |
| MSQ 10 | 500 | 600 | 200 | 1.00 mm |
| MSQ 11 | 500 | 600 | 250 | 1.00 mm |
| MSQ 12 | 550 | 700 | 250 | 1.20 mm |
| MSQ 13 | 630 | 750 | 250 | 1.20 mm |
| MSQ 14 | 630 | 900 | 250 | 1.20 mm |
