MSS Wall Mounting Cabinets

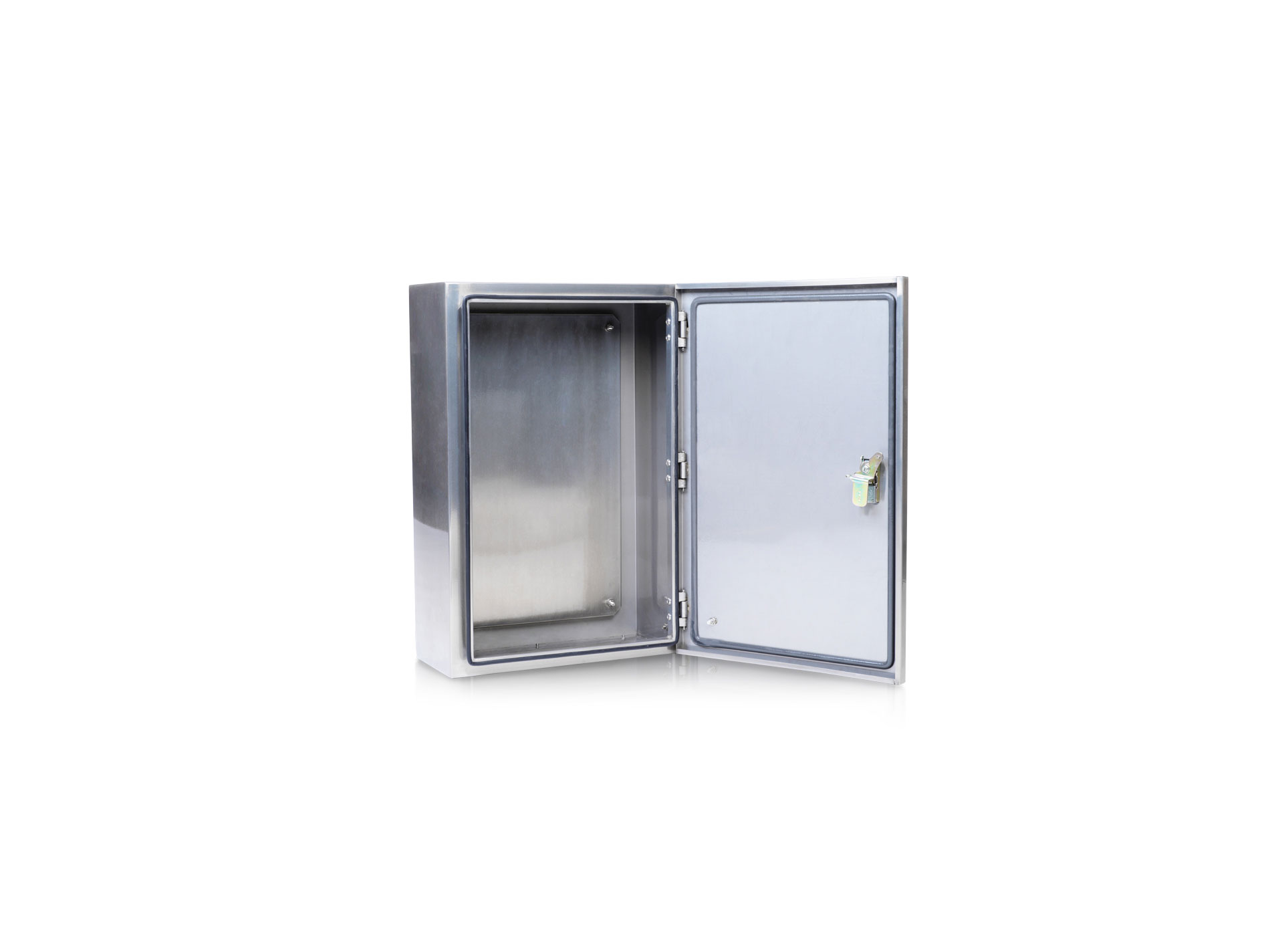

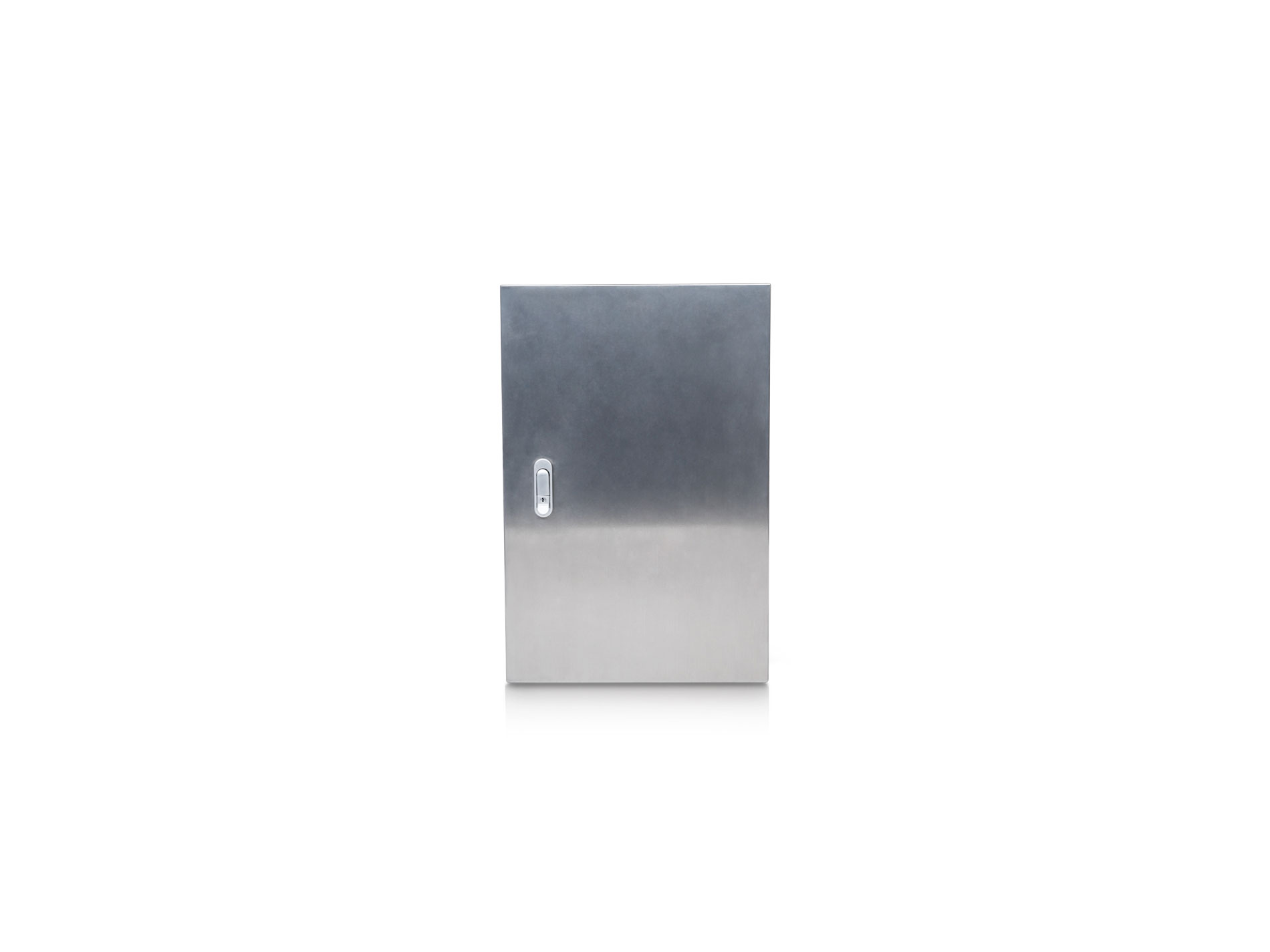

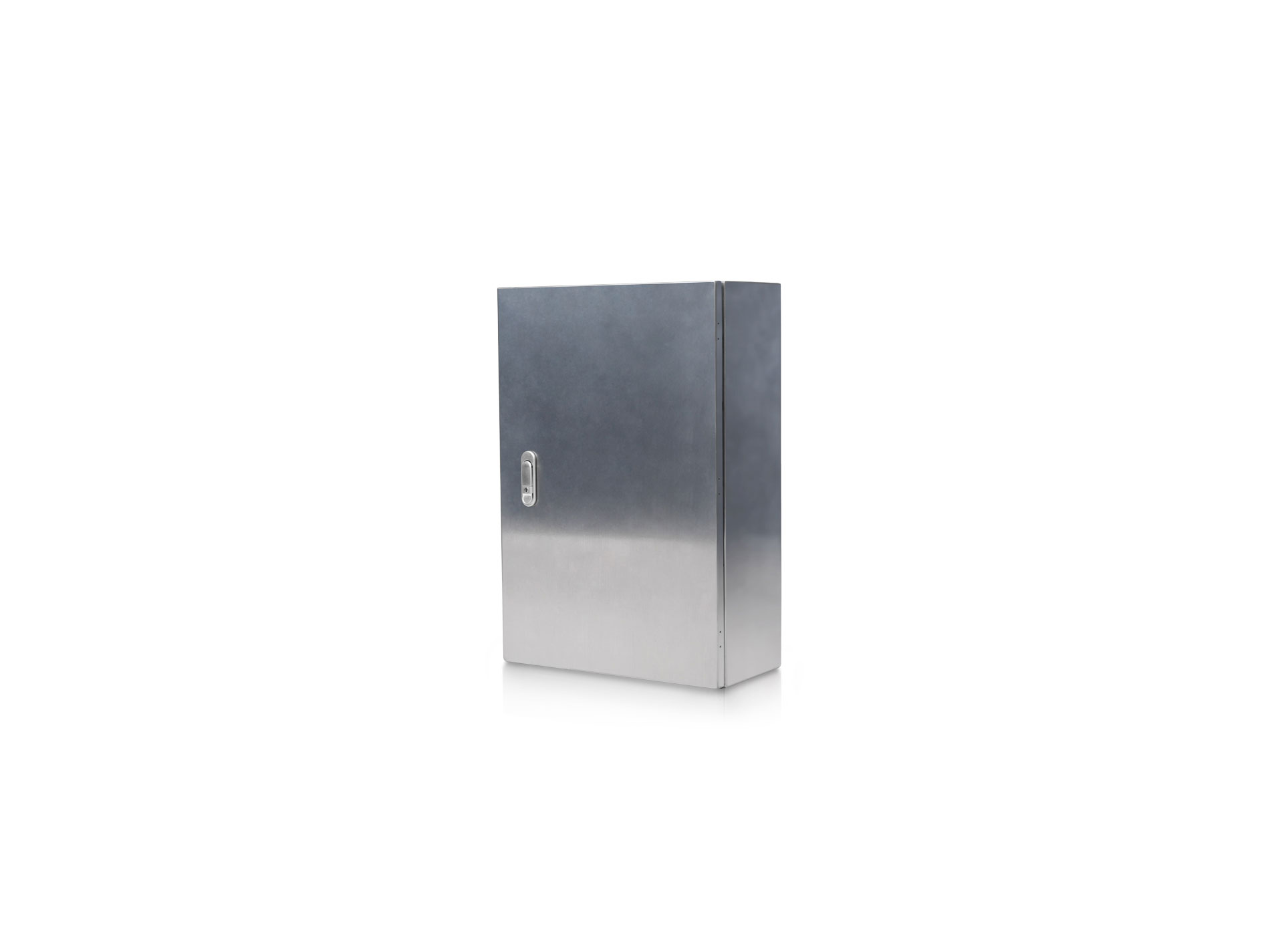

Wall Mounting Cabinets
Standard Materials : Stainless Steel Sheet Grade 304 Thickness 1.0
Finishing : Hairline (HL)
Technical Features :
– Houses Electrical Controls and Instruments
– Internal Mounting Plate
– Bottom Gland Plate for Incoming Cable
– Foam sealing with FIPFG (Foamed In-Place Foam Gasket)
– Suitable for Indoor and Outdoor Installation with wide range of corrosion and temperature resistance
– Beauty appearance
– Water and Dust Protection IP 55 (TIS 513-2553)
Notes : Can be customized with different materials, sizes and textures
– Stainless Materials : Grade 304
– Finishing 2B, BA or Hairline (HL)
OEM are welcome
| Type | Size(WxHxD) | Thickness | ||
|---|---|---|---|---|
| W (mm.) | H (mm.) | D (mm.) | ||
| MSS 1 | 200 | 300 | 150 | 1.0 mm |
| MSS 2 | 250 | 350 | 150 | 1.0 mm |
| MSS 3 | 300 | 450 | 170 | 1.0 mm |
| MSS 4 | 350 | 520 | 170 | 1.0 mm |
| MSS 5 | 400 | 570 | 200 | 1.0 mm |
| MSS 6 | 440 | 610 | 230 | 1.0 mm |
| MSS 7 | 570 | 690 | 250 | 1.0 mm |
| MSS 8 | 600 | 760 | 250 | 1.0 mm |
| MSS 9 | 640 | 920 | 250 | 1.0 mm |
