MSSW

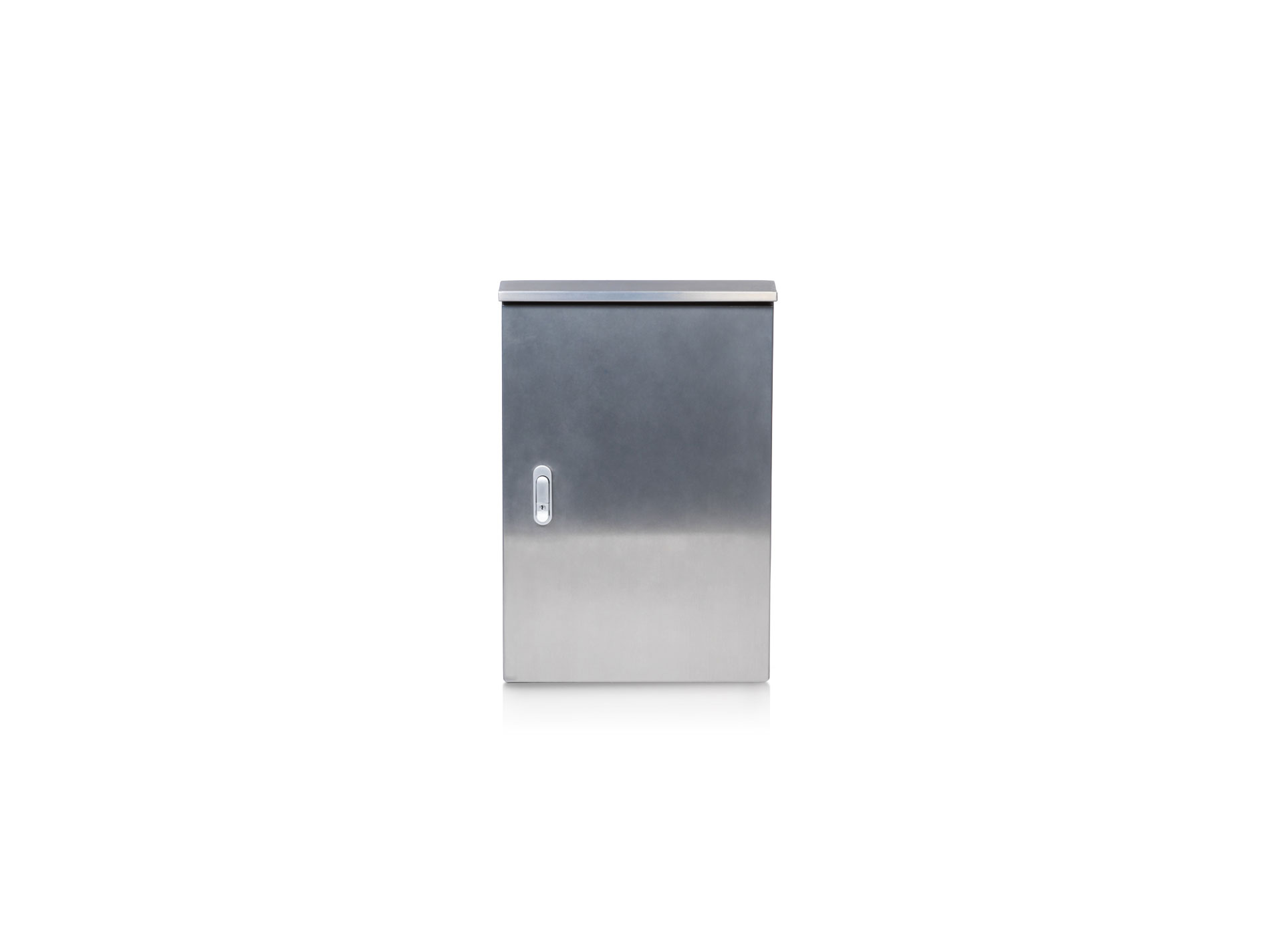

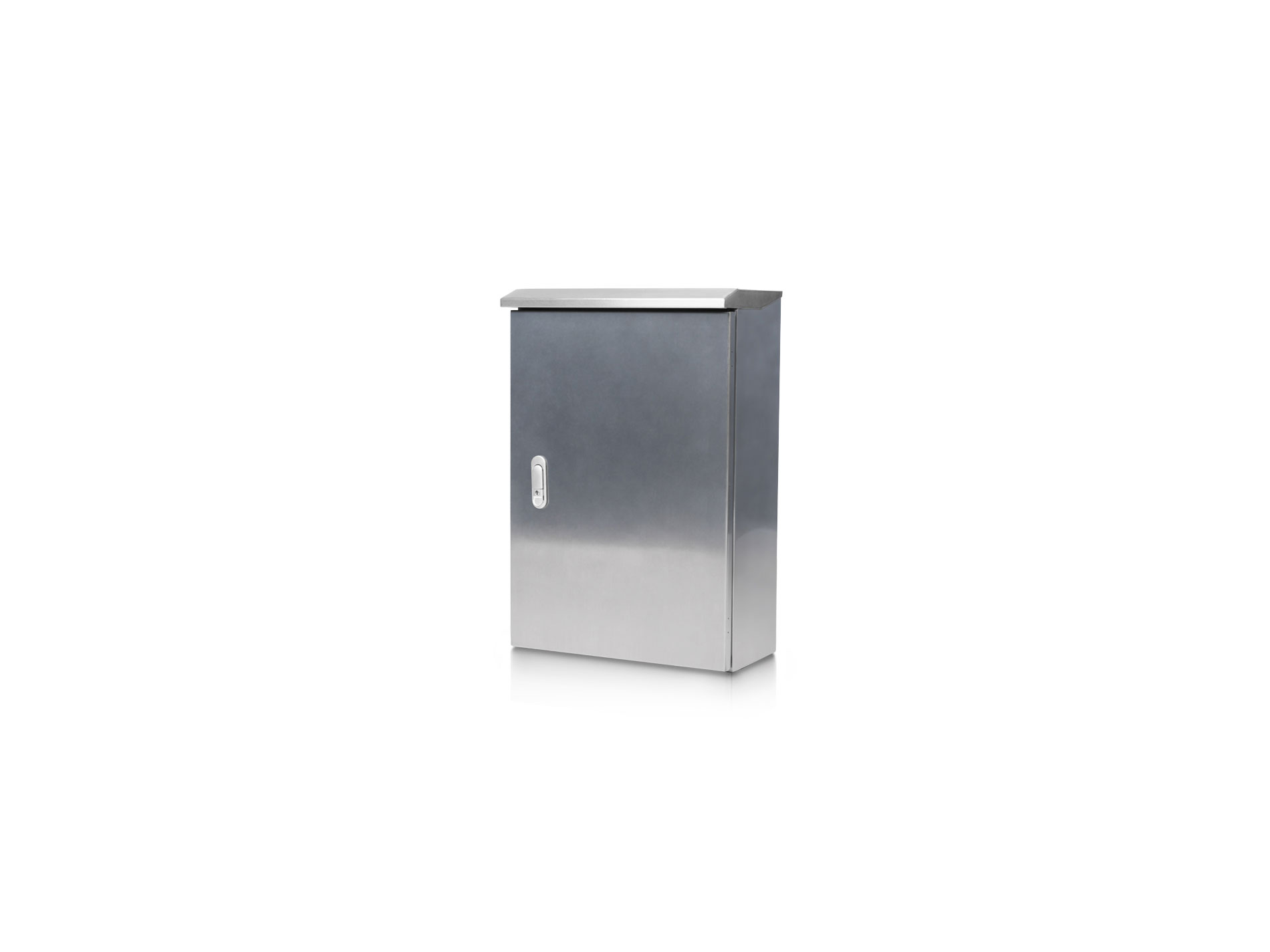

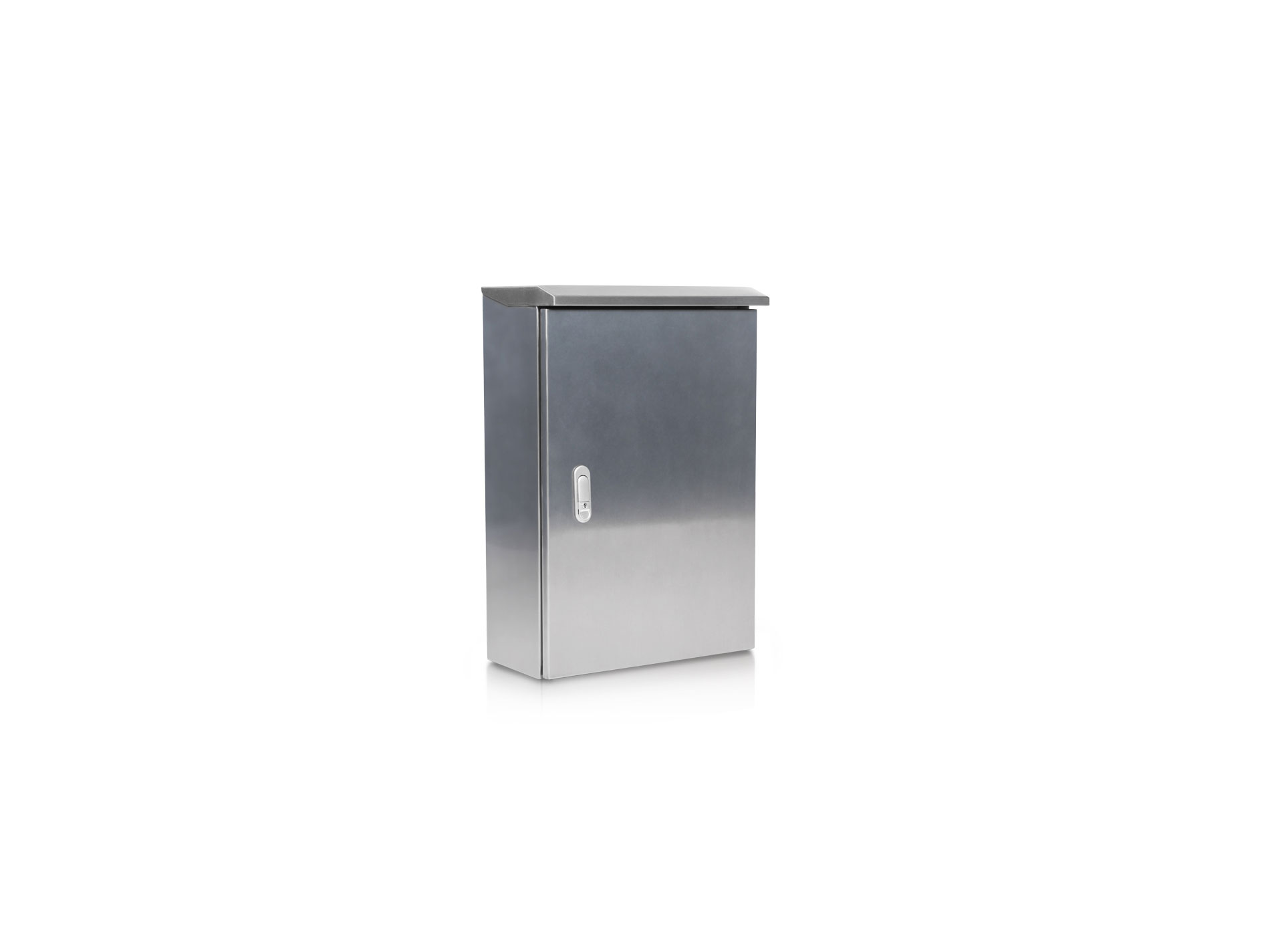

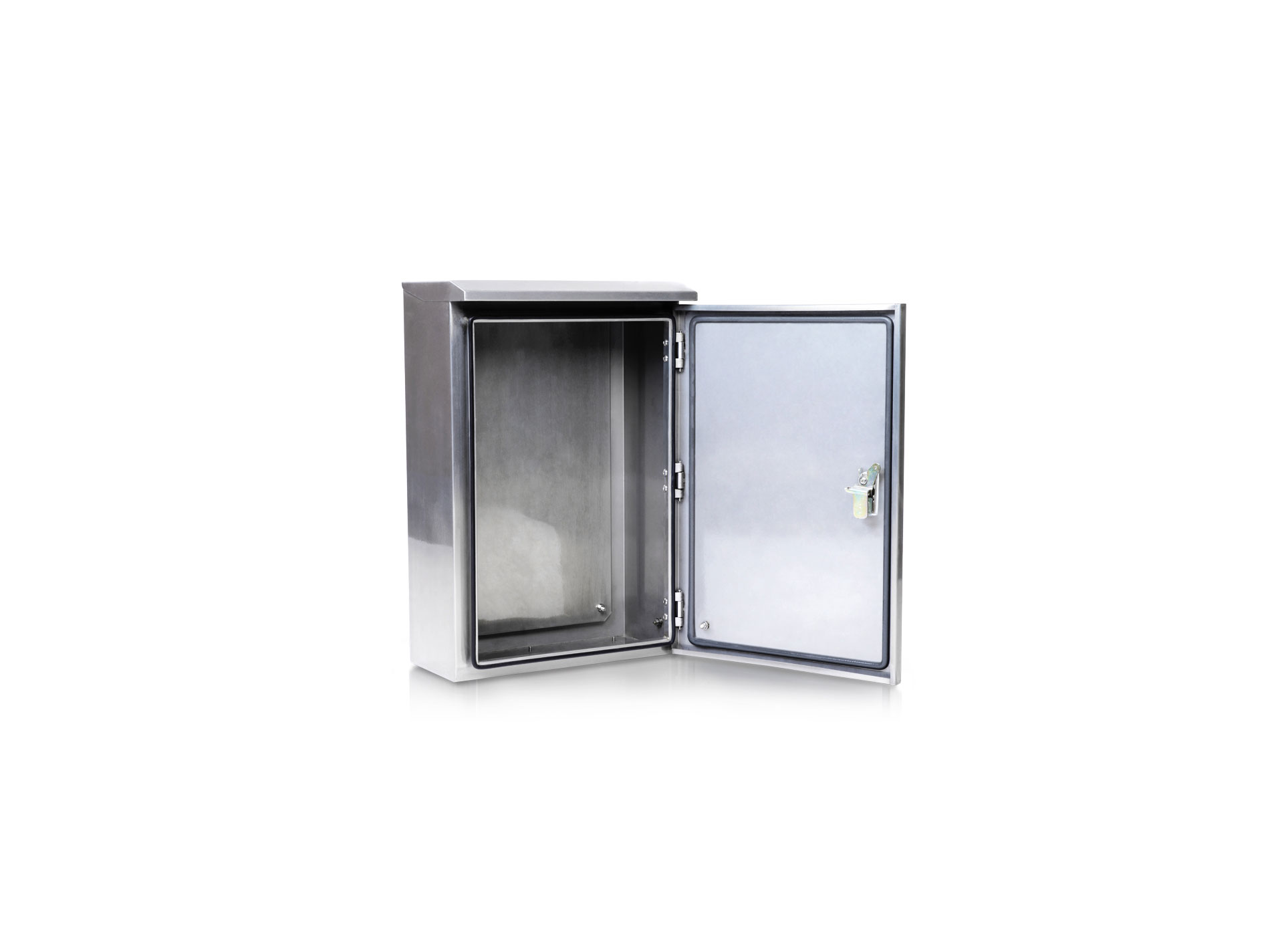

Compact Enclosures
Standard Materials : Stainless Steel Sheet Grade 304 Thickness 1.0 – 1.2 mm.
Finishing : Hairline (HL)
Technical Features :
– Houses Electrical Controls and Instruments
– Internal Mounting Plate
– Bottom Gland Plate for Incoming Cable
– Foam sealing with FIPFG (Foamed In-Place Foam Gasket)
– Suitable for Indoor and Outdoor Installation with wide range of corrosion and temperature resistance
– Beauty appearance
– Water and Dust Protection IP 55 (TIS 513-2553)
Notes : Can be customized with different materials, sizes and textures
– Stainless Materials : Grade 304 and Grade 316
– Finishing 2B, BA or Hairline (HL)
OEM are welcome
| Type | Size(WxHxD) | Thickness | ||
|---|---|---|---|---|
| W (mm.) | H (mm.) | D (mm.) | ||
| MSSW 1-1 | 300 | 400 | 150 | 1.0 mm |
| MSSW 1-2 | 300 | 500 | 150 | 1.0 mm |
| MSSW 1-3 | 400 | 600 | 200 | 1.0 mm |
| MSSW 1-4 | 500 | 600 | 200 | 1.0 mm |
| MSSW 1-5 | 500 | 700 | 200 | 1.0 mm |
| MSSW 1-6 | 600 | 800 | 200 | 1.0 mm |
| MSSW 1-7 | 600 | 1000 | 300 | 1.2 mm |
| MSSW 1-8 | 700 | 1200 | 300 | 1.2 mm |
