WT

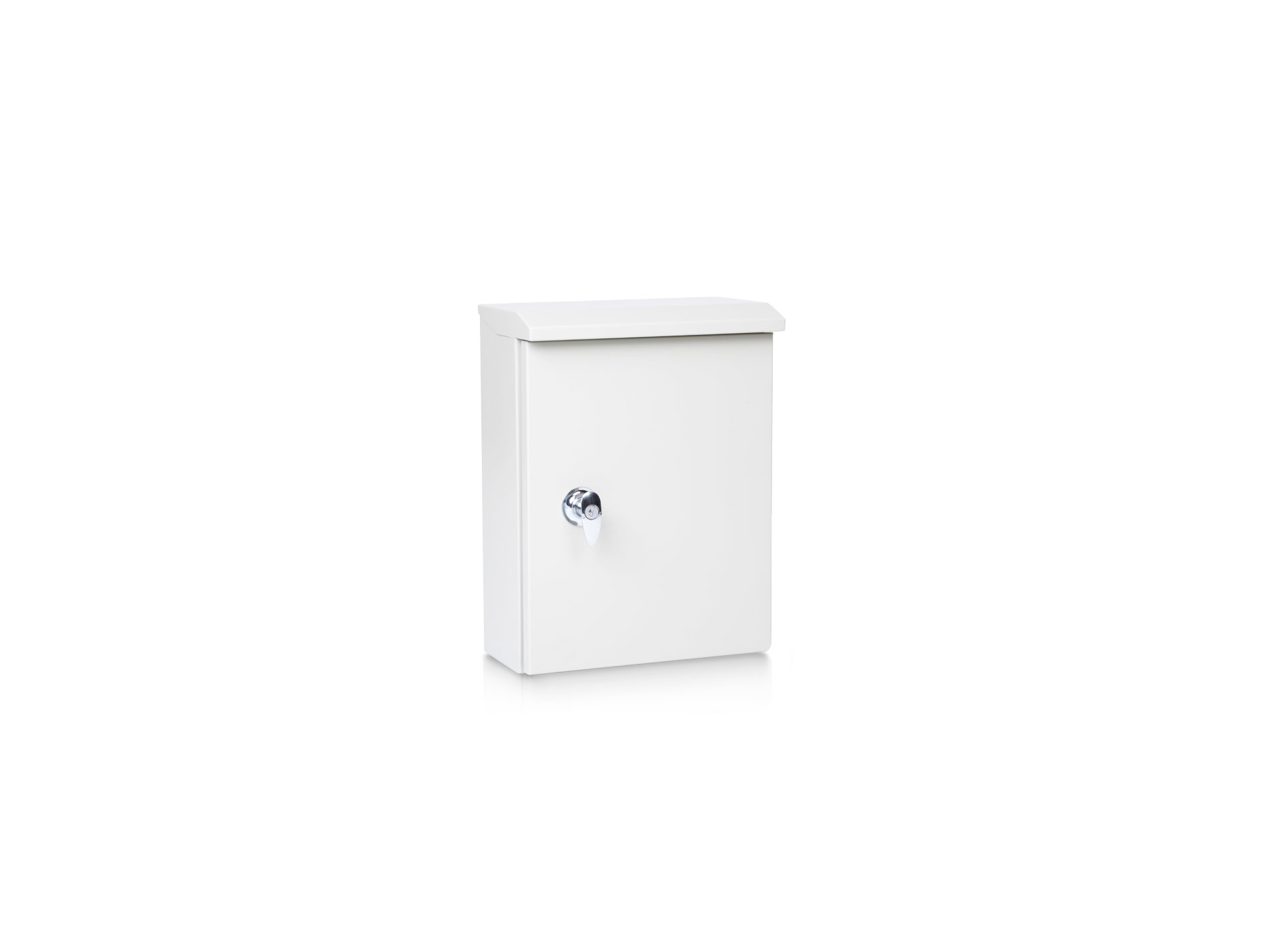

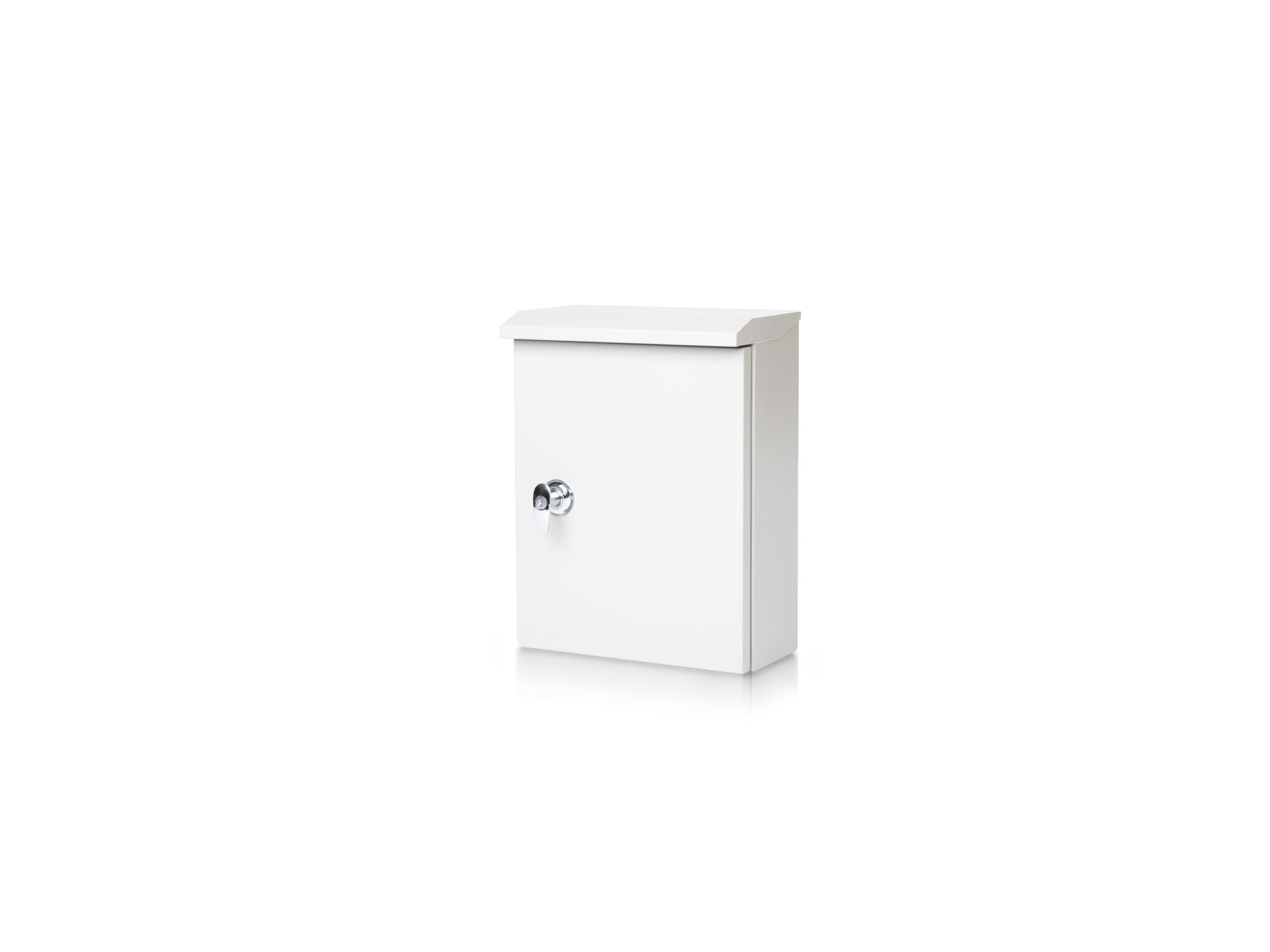

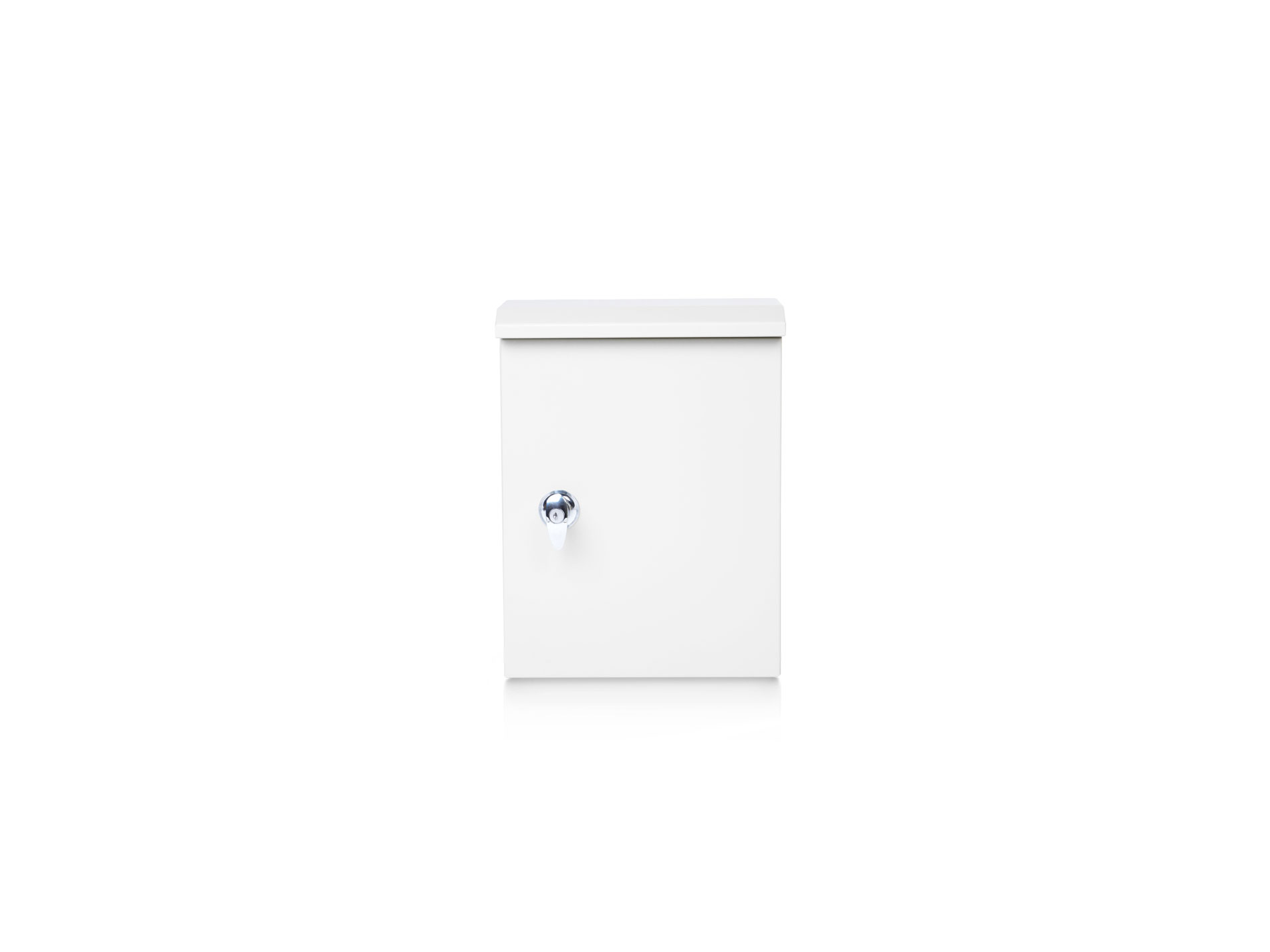

Wall Mounting Cabinets
Standard Materials : SPCC – Cold Rolled Mild Steel Sheet 1.0 – 1.2 mm.
Finishing : Epoxy Powder Coatings (Light Cream)
Technical Features :
– Houses Electrical Controls and Instruments

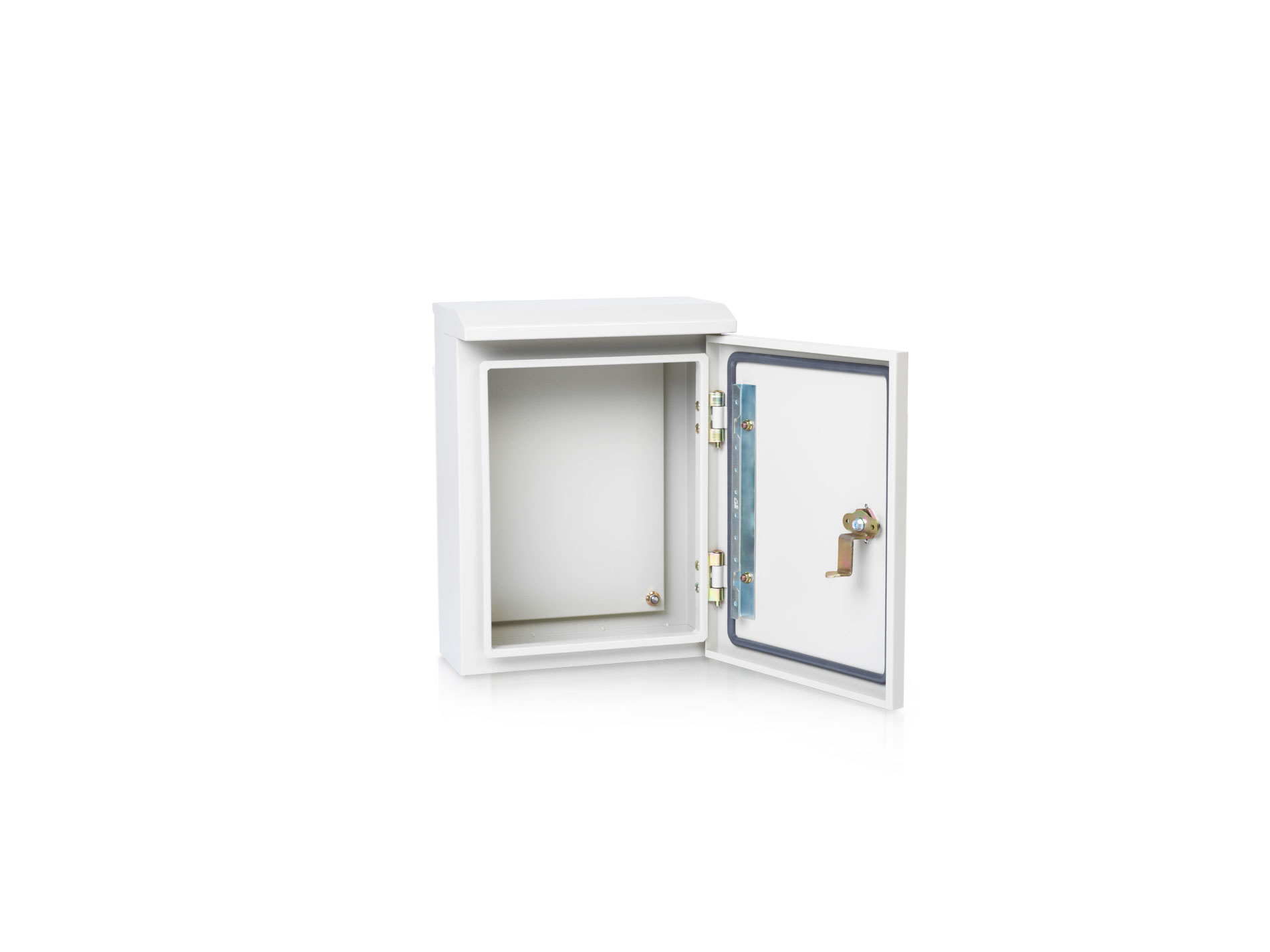

– Internal Mounting Plate
– Foam sealing with FIPFG (Foamed In-Place Foam Gasket)
– Suitable for Indoor and Outdoor Installation
– Water and Dust Protection IP 55 (TIS 513-2553)
Notes : Can be customized with different materials, sizes, finish colors and textures
OEM are welcome
| Type | Size(WxHxD) | Thickness | ||
|---|---|---|---|---|
| W (mm.) | H (mm.) | D (mm.) | ||
| WT 1 | 300 | 400 | 150 | 1.00 mm |
| WT 2 | 300 | 500 | 150 | 1.00 mm |
| WT 3 | 400 | 600 | 200 | 1.00 mm |
| WT 4 | 500 | 600 | 200 | 1.00 mm |
| WT 5 | 500 | 700 | 200 | 1.20 mm |
| WT 6 | 600 | 800 | 200 | 1.20 mm |
| WT 7 | 600 | 1000 | 300 | 1.20 mm |
| WT 8 | 700 | 1200 | 300 | 1.20 mm |
